IP69K Washdown Backlight Bars

IP69K washdown backlight bars provide high brightness, highly diffuse illumination in a reliable package designed to withstand the rigours of harsh chemical cleaning & de-contamination.

Our new Waterproof IP69K Washdown lights have some significant performance improvements over the older IP69K Food Bars:

  • 40% higher power: giving you reduced exposure times and higher production rates, or smaller apertures with larger depth of fields [8,185 lux at 0.5m (125mm bar), 14,650 lux (1250mm bar)]
  • 100 x faster rise & fall times [rise time now 15µs (was 1.5ms); fall time now 10 µs (was 1ms)]
  • New Dimming function [100% – 35% (with 0-10V)], giving you more control of brightness

  • Smooth cylindrical surfaces for rapid cleaning
  • Wide range of cleaning solvents
  • Suitable for high humidity environments
  • Wide ambient operating temperature range
  • Longest and Brightest bars on the market! (Standard up to 1250mm)
  • 6 colour options covering most applications
  • Swivel mounting brackets for easy installation
  • Simple, Plug & Light 24VDC operation
  • Integrated current controller & single M12 connection
  • Short lead-time
  • 3 year warranty*

* Warranty: 3 years (UV: 1 year).
See www.tpl-vision.com/de/dienstleistungen/gewaehrleistung/

Testimonial

“TPL Vision has the best solutions for IP69K lights on the market. We searched the world and have tried many different lights, but nothing comes close to TPL’s quality. They have helped us surpass the industry standard and have taken our product to the next level. TPL Vision is a true partner. TPL provides outstanding service and support. We have found their responsiveness to be unmatched in the industry.”

Jeff Youngs, President and CEO, ProSpection Solutions, LLC

ip69k washdown barlights
ip69k washdown barlights

Technische Informationen

Bitte klicken Sie auf die nachfolgenden Tabs.

Beleuchtungsmethode

Key technical data

Operating voltage24 VDC
Supplied cable length5 meters
Operating modesContinuous and Strobe
Trigger (strobe) modePNP & NPN
Rise time / Fall time15 µs / 10 µs
Dimming controlYes, 100% – 35%
Ambient temperature-20°C to +60°C (-4°F to +140°F) – See Technical User Guide
Ambient humidity80% max
IP ratingIP69K (IEC 60529)
Housing316L stainless steel / food grade PPMA
L-Brackets (included)Design permits 360° rotation of light
Gewährleistung3 years (UV: 1 year)
See www.tpl-vision.com/de/dienstleistungen/gewaehrleistung/

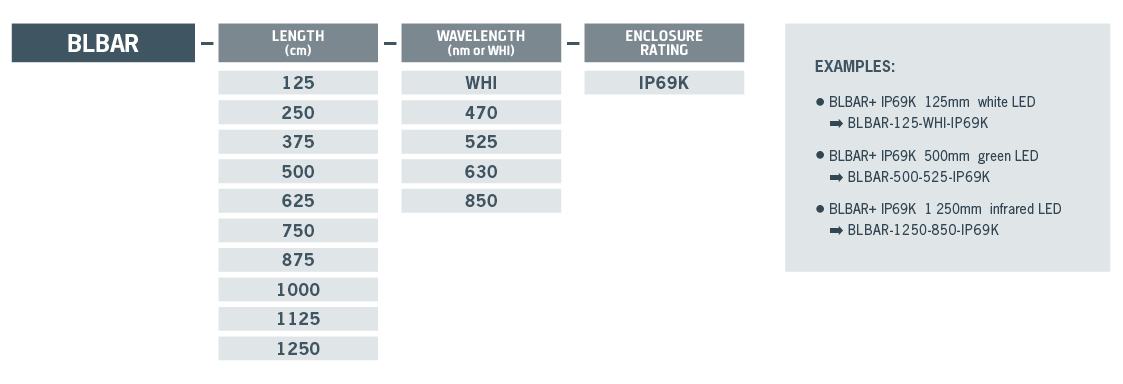

Bestellnummer

  • Smooth cylindrical surfaces for rapid cleaning
  • Wide range of cleaning solvents
  • Suitable for high humidity environments
  • Wide ambient operating temperature range
  • Longest and Brightest bars on the market! (Standard up to 1250mm)
  • 6 colour options covering most applications
  • Swivel mounting brackets for easy installation
  • Simple, Plug & Light 24VDC operation
  • Integrated current controller & single M12 connection
  • Short lead-time
  • 3 year warranty*

* Warranty: 3 years (UV: 1 year).
See www.tpl-vision.com/de/dienstleistungen/gewaehrleistung/

Testimonial

“TPL Vision has the best solutions for IP69K lights on the market. We searched the world and have tried many different lights, but nothing comes close to TPL’s quality. They have helped us surpass the industry standard and have taken our product to the next level. TPL Vision is a true partner. TPL provides outstanding service and support. We have found their responsiveness to be unmatched in the industry.”

Jeff Youngs, President and CEO, ProSpection Solutions, LLC

ip69k washdown barlights
ip69k washdown barlights

Technische Informationen

Bitte klicken Sie auf die nachfolgenden Tabs.

Beleuchtungsmethode

Key technical data

Operating voltage24 VDC
Supplied cable length5 meters
Operating modesContinuous and Strobe
Trigger (strobe) modePNP & NPN
Rise time / Fall time15 µs / 10 µs
Dimming controlYes, 100% – 35%
Ambient temperature-20°C to +60°C (-4°F to +140°F) – See Technical User Guide
Ambient humidity80% max
IP ratingIP69K (IEC 60529)
Housing316L stainless steel / food grade PPMA
L-Brackets (included)Design permits 360° rotation of light
Gewährleistung3 years (UV: 1 year)
See www.tpl-vision.com/de/dienstleistungen/gewaehrleistung/

Bestellnummer

Zubehör
