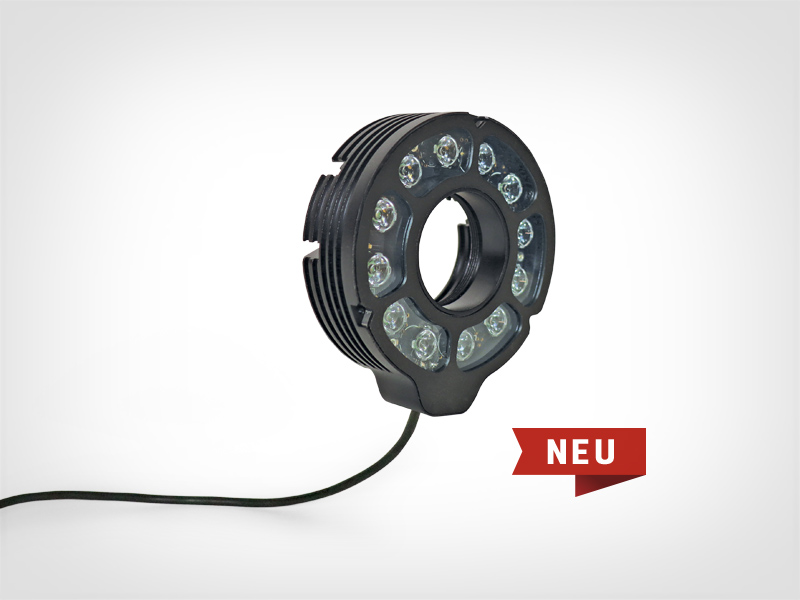

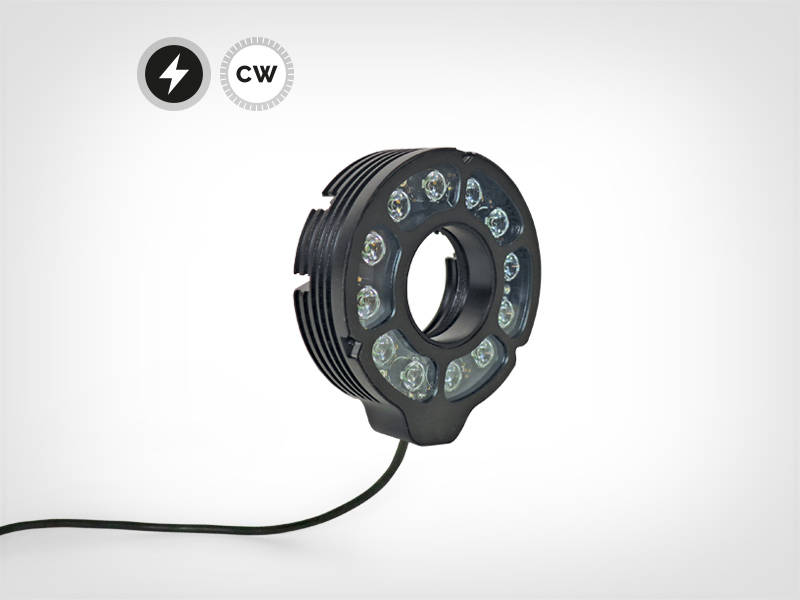

Modular M-TRING

Compact, modular machine vision ring light featuring both opaque and transparent diffuser options and Angle Changer flexibility. Mit diesem vielseitigen IP67-zertifizierten LED-Ringlicht können Sie die Beleuchtungsleistung ganz einfach anpassen. Mit der integrierten OverDrive-Funktion liefern die 12 leistungsstarken LEDs des M-TRING eine intensive Beleuchtung, die sich perfekt für die direkte Ausleuchtung kreisförmiger Bereiche eignet. Sein leichtes und robustes Design sorgt für eine nahtlose Integration mit Bildverarbeitungssystemen, Kameras und Roboterarmen.

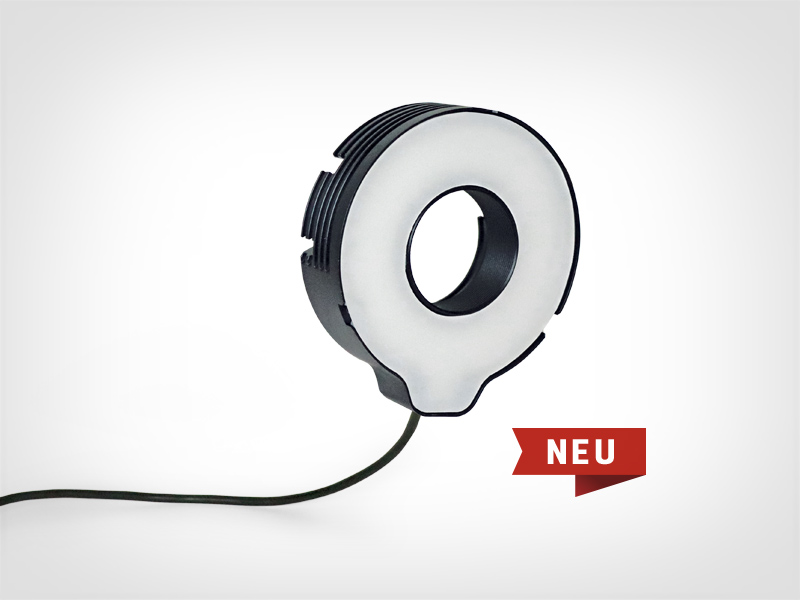

Der M-TRING ist in zwei Versionen erhältlich (DO-opak und DT-transparent). Die transparente Version liefert die höchste Leistung und eignet sich gut für verschiedene Arbeitsabstände, während die undurchsichtige Version sich hervorragend für die Inspektion glänzender, reflektierender Teile eignet, da sie alle sichtbaren LED-Hotspots effektiv verdeckt. Ideal für Präzisionsmaschinen, Robotik, 2D-Codelesung und kleine Qualitätsprüfungsanwendungen.

  • Continuous and Strobe OverDrive mode with dimming
  • 37 mm internal diameter allows direct mounting to C-mount lenses
  • Simple installation and use with current control integrated onto the cable

Produktdemonstration

High-Power Ring Lights for Machine Vision

  • Verfügbar in weiß (4000K), rot (630nm), IR(850nm), grün (525nm) und blau(470nm)
  • Two different versions with transparent or opaque diffuser
  • Robust industrial design for the toughest environments
  • Easy mounting for any working distance with flexible cable length

Gewinner des Innovationspreises

modular m tring

The Vision Systems Design Innovators Awards program recognises the most innovative products and services in the vision and image processing industry. Die Modular M-TRING hat im Jahr 2025 eine Bronzemedaille gewonnen.

Direct Attachment to C-Mount Lenses

modular m tring

The M-TRING can be easily attached to C-mount lenses using an adapter, integrating the lighting system directly without the need for extra brackets or fastening components. This direct connection not only saves space, but ensures that the ring light is perfectly centred and aligned with the camera’s field of view, providing optimal illumination for the object being inspected.

Compatible With Angle Changers

Die mit der Version mit transparentem Diffusor kompatiblen Angle Changers verbessern die Anpassungsfähigkeit der Ringlichter an verschiedene Anwendungen. Indem Sie die Angle Changers an das Ringlicht anklipsen, können Sie den Beleuchtungswinkel und die Stärke der Diffusion ganz einfach einstellen.

Sie müssen das Produkt nicht auseinandernehmen! Mit magnetischen Befestigungen für eine mühelose Montage und Demontage und Schrauben für eine feste Montage sorgen die Winkelwechsler für Anpassungsfähigkeit in dynamischen Umgebungen und sich verändernden Anwendungsspezifikationen.

m tring angle changers

Mit 8 verschiedenen Optionen bieten die M-TRING Angle Changers eine umfassende Kontrolle über die Einstellung von Helligkeit und Intensität des beleuchteten Bereichs, und das mit nur wenigen Zubehörteilen. Zu den kompatiblen Optionen gehören:

  • Narrow (±10°)
  • Medium (±17°)
  • Wide (±25°)
  • Converging (22° inwards)
  • Polarised versions and polariser alone.

Converging Light Angle Changers

modular m tring

The innovative Converging Angle Changer* is a newly developed feature, eliminating the „halo“ effect typical of ring lights, and concentrating illumination in the centre of the field of view. By concentrating light at a 22° angle in the centre of the field of view, the Converging AC enables users to quickly and easily achieve a distinct and focused illumination style. Combined with the powerful output of the M-TRING, this type of lighting is ideal for small-scale vision systems requiring intense lighting for the imaging of a specific area.

*Patent pending.

TECHNISCHE INFORMATIONEN

Bitte klicken Sie auf die nachfolgenden Tabs.

Beleuchtungsmethode

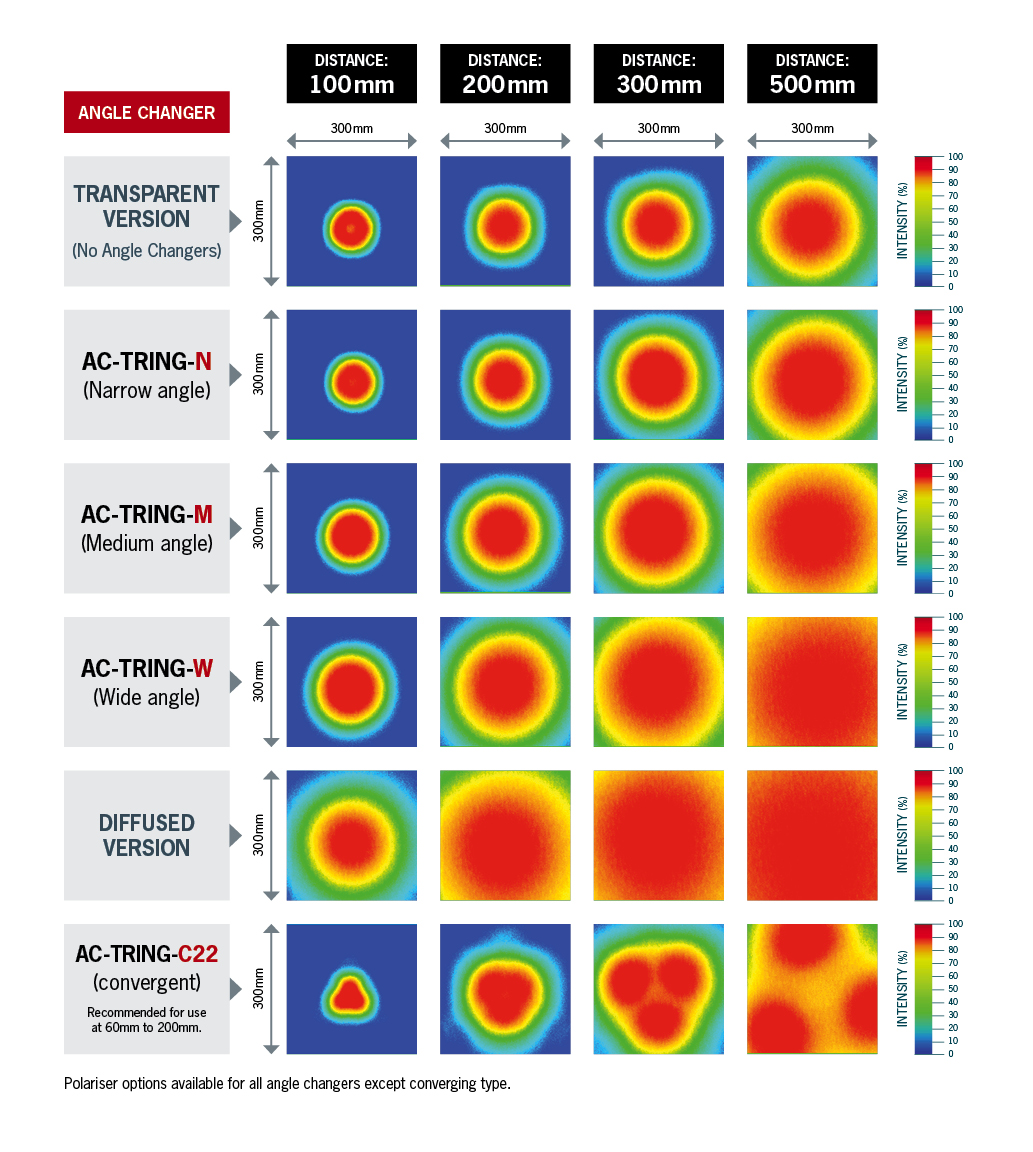

Homogeneity

modular m tring

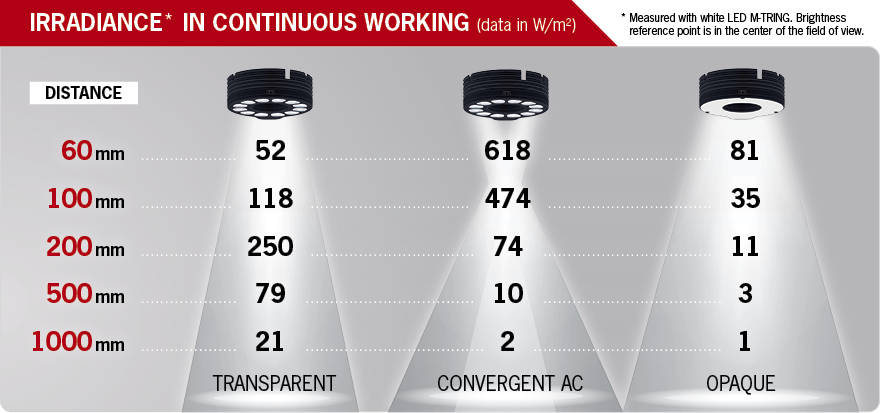

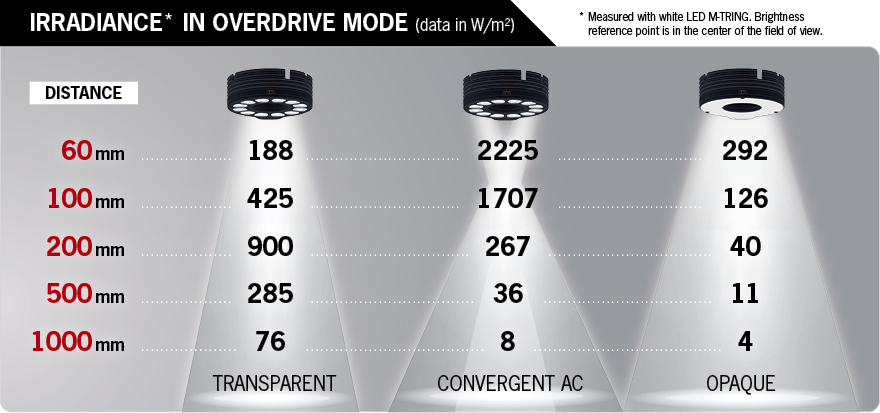

Beleuchtungsstärke

modular m tring
modular m tring

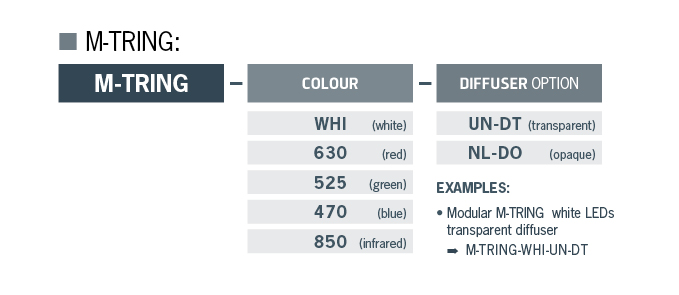

Bestellnummer

modular m tring
