MR-Dome

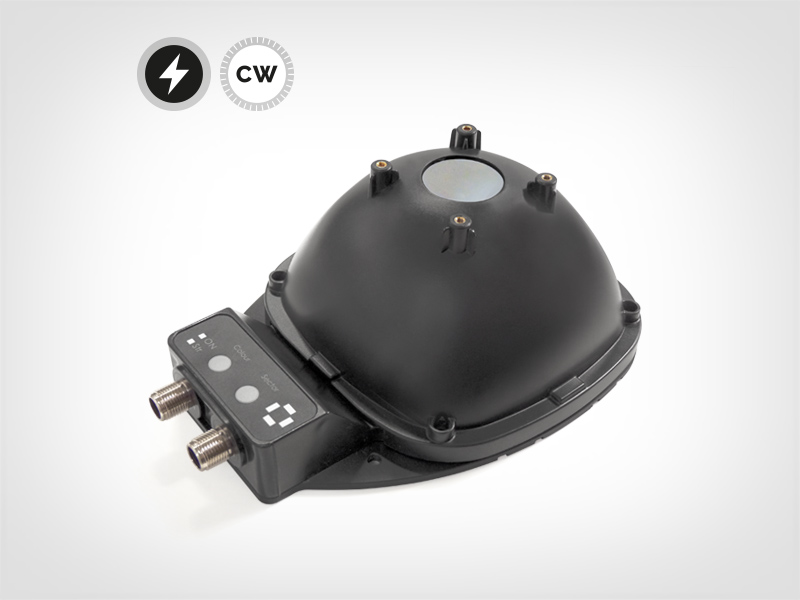

The MR-DOME is compound of a bi-colour LED lighting ring (2 sets of colours and 2 dimensions) and a dome reflector. It has been designed with tough production environments in mind: IP65 as standard, overdrive embedded, simple remote control capability (selection of colours and quadrants).

Reflected dome light can be used when:

  • objects are highly reflective (shiny),

  • the target area is subject to shadowing with direct or low angle light sources,

  • the target area has some very uneven surfaces.

The MR-DOME should be mounted close to the object of interest to maximise the effect of the illumination style.

To minimise the «black dot» visible within the image, the diameter of the hole at the top of the dome should also be minimised. This can be done using the supplied plastic caps. The MR-DOME provides a highly-diffused light source which has no component of direct lighting. The light intensity is lower than with other illumination techniques but will have a high degree of homogeneity.

Produktdemonstration

Automaticon 2019

The Modular Ringlight won a gold medal at Automaticon 2019.

Colour variations

TPL Vision is extremely careful about BIN sorting in the selection of LEDs for their products.

Specifically for the Cyan series on this product, the human eye is very sensitive to colour variations. It may appear to the customer that they do not appear the same between two cyan LED products. Despite any noticeable differences, the peak wavelength variation does not exceed 10nm.

Here are the following bandpass camera filters we recommend to fit with the Modular Ringlight:

We advise using bandpass filters from MidOpt: http://www.midopt.com

Fallstudie – MR-Dome

mr dome caps case study

Technische Informationen

Bitte klicken Sie auf die nachfolgenden Tabs.

Beleuchtungsmethode

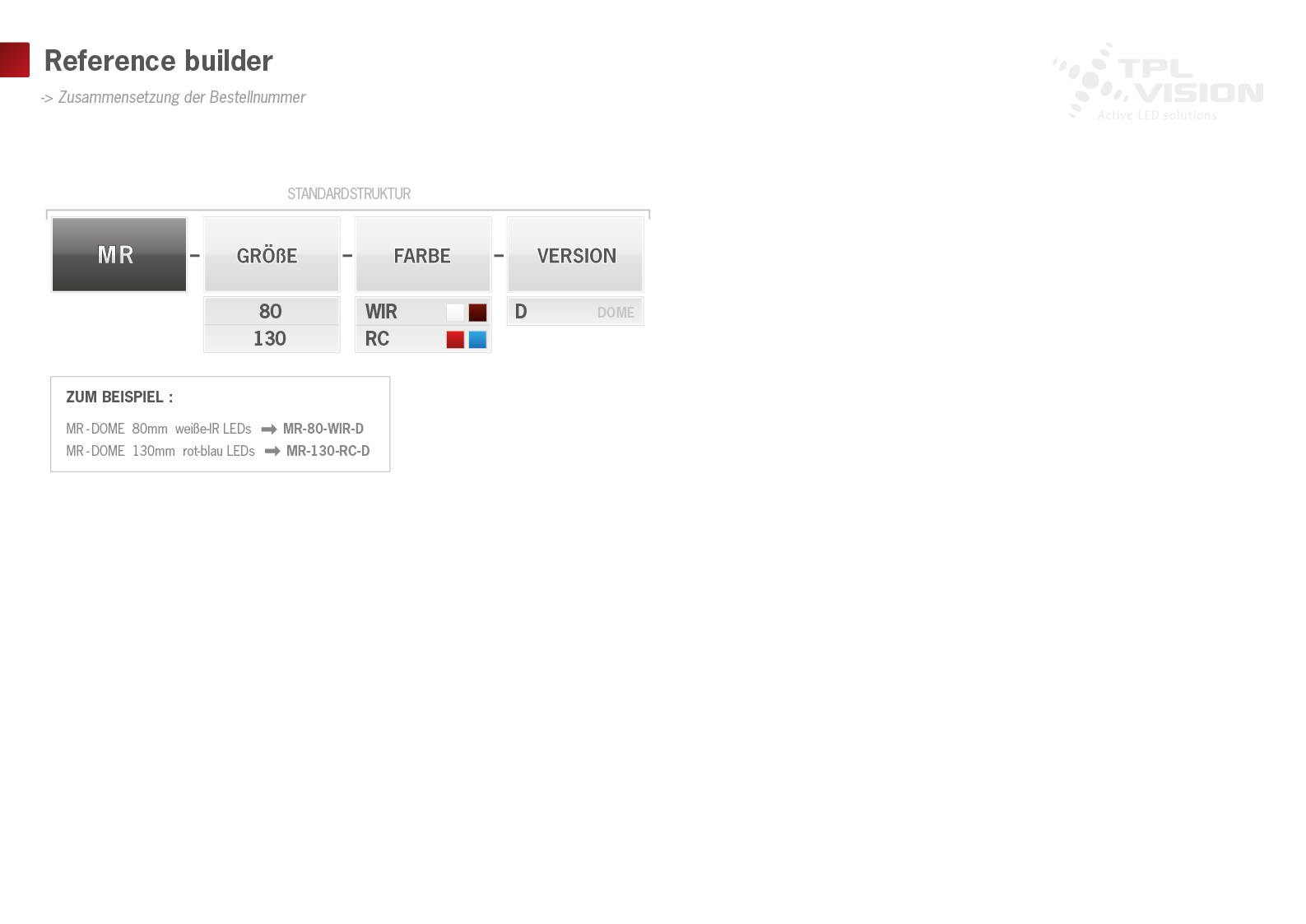

Bestellnummer

Produktdemonstration

Automaticon 2019

The Modular Ringlight won a gold medal at Automaticon 2019.

Colour variations

TPL Vision is extremely careful about BIN sorting in the selection of LEDs for their products.

Specifically for the Cyan series on this product, the human eye is very sensitive to colour variations. It may appear to the customer that they do not appear the same between two cyan LED products. Despite any noticeable differences, the peak wavelength variation does not exceed 10nm.

Here are the following bandpass camera filters we recommend to fit with the Modular Ringlight:

We advise using bandpass filters from MidOpt: http://www.midopt.com

Fallstudie – MR-Dome

mr dome caps case study

Technische Informationen

Bitte klicken Sie auf die nachfolgenden Tabs.

Beleuchtungsmethode

Bestellnummer

Zubehör
