Accurate tire inspection starts with exceptional illumination. In high-throughput automotive service and manufacturing environments, TPL Vision’s High Power Strobe Bar Light (HPS) enables fast, fully automated tire analysis, without physical contact, delivering the image quality needed for reliable machine vision performance.
Tire inspection presents a unique lighting challenge. The dark, matte rubber surface absorbs a significant amount of light, making it difficult to capture high-contrast images. In addition, vehicles are moving through the inspection area, creating a dynamic imaging environment that requires very short exposure times to eliminate motion blur. To overcome these challenges, a powerful light source is essential.

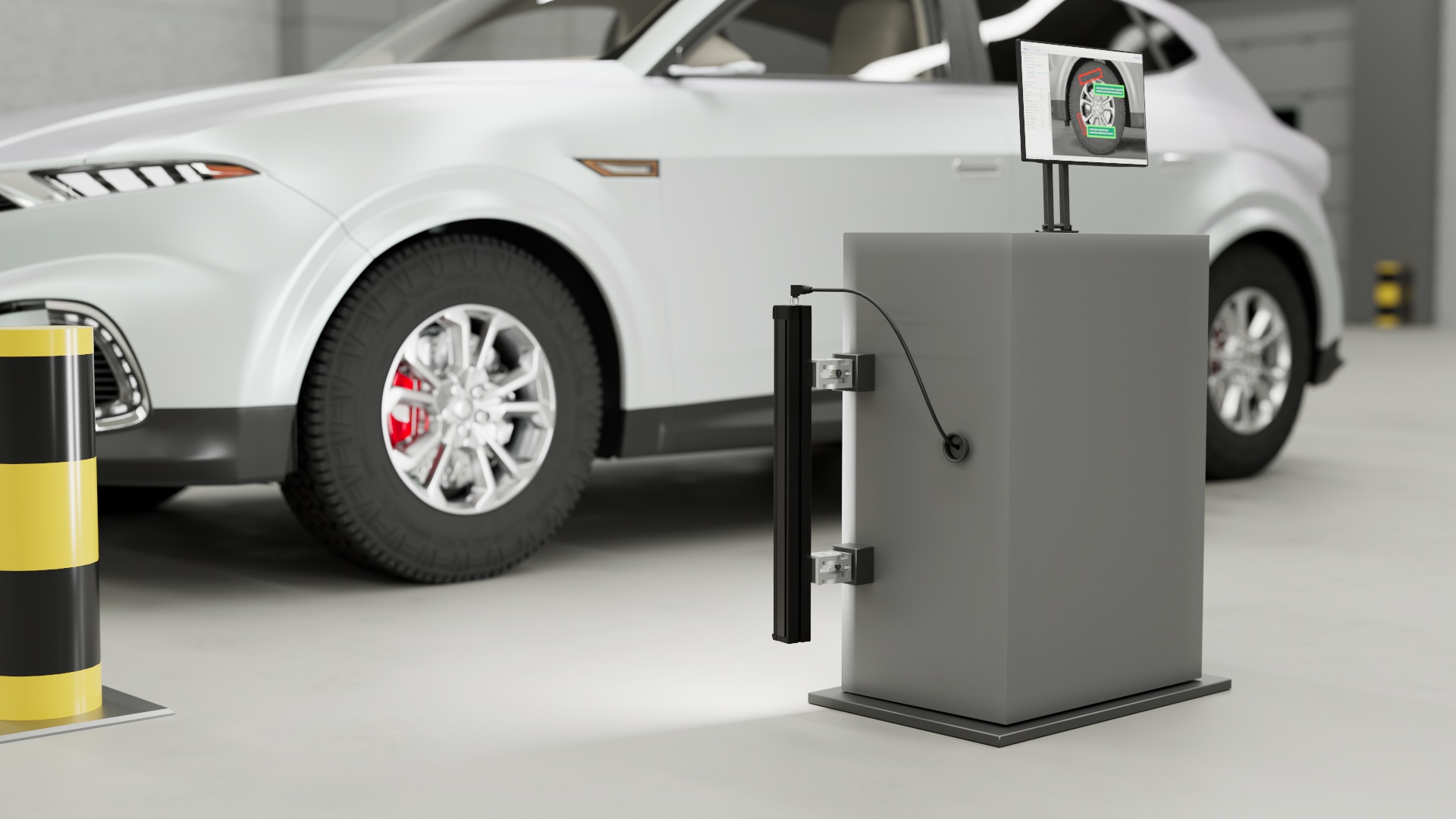

As a vehicle moves slowly through the inspection zone, the HPS Bar operates in high-intensity strobe mode, producing extremely bright, uniform illumination that effectively freezes motion and reveals even the finest surface details. High-resolution machine vision cameras capture images in real time, while inspection data is instantly processed and shared with downstream systems for immediate action.
This advanced inspection process can identify and assess key tire characteristics, including:
- Tire size and specification: automatic identification for compliance verification.

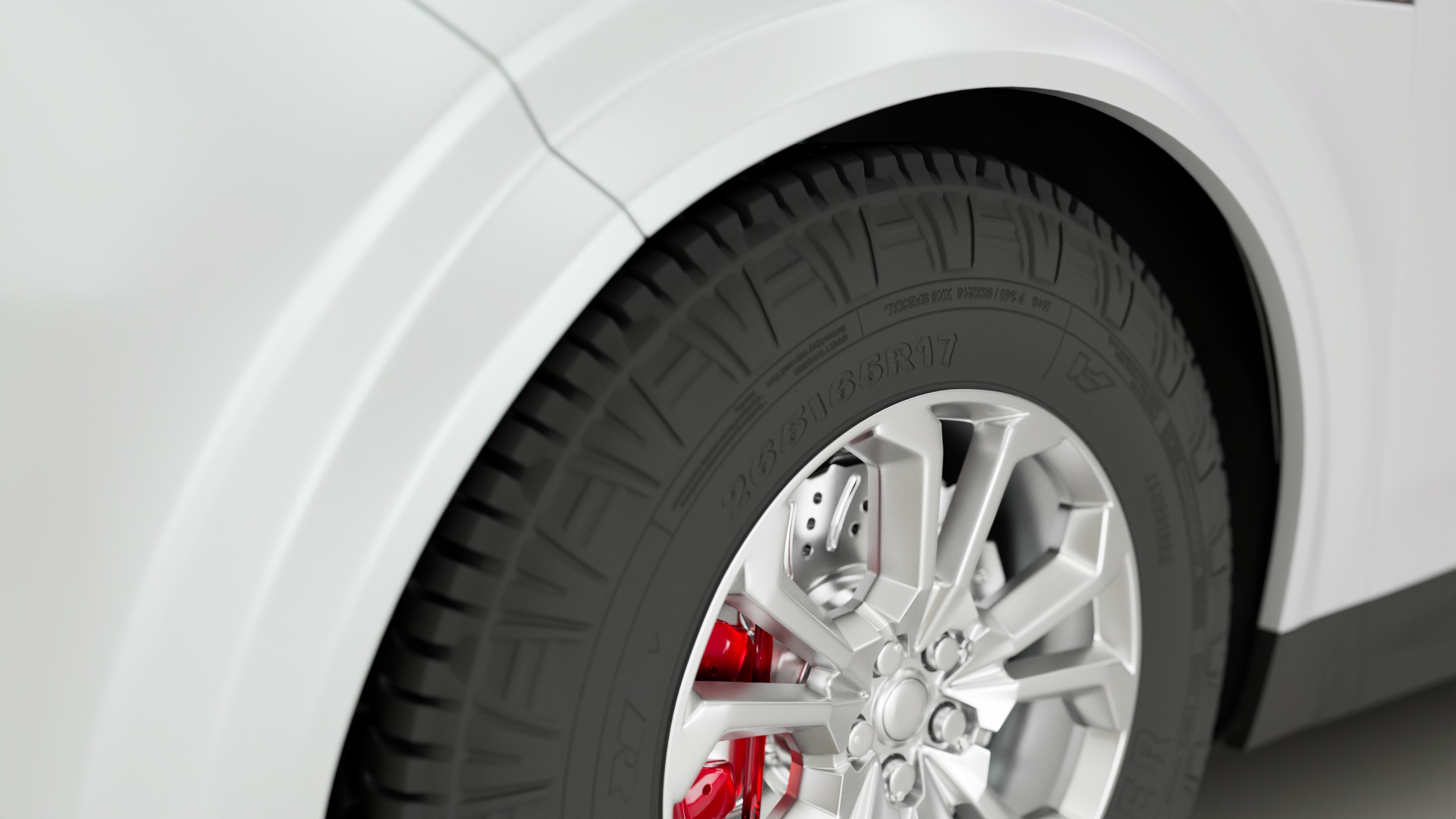

- Tire type and brand: recognised from tread pattern and sidewall markings.
- Manufacturing age: decoded from DOT date codes for safety-critical monitoring.
The result is a fast, fully contactless inspection workflow that delivers consistent, objective measurements and reduces manual effort throughout the line. With powerful, homogeneous illumination from the HPS Bar, even subtle signs of wear, sidewall damage, and tread degradation are detected with exceptional clarity, at line speed.
WHY ILLUMINATION MATTERS IN MACHINE VISION
LIGHTING is one of the most critical factors in any machine vision or code-reading system. The quality of illumination directly impacts image contrast, feature visibility, and overall inspection reliability. Without the right lighting, even the most advanced cameras and software can struggle to deliver accurate results.
Powerful Strobe Illumination for Tire Inspection

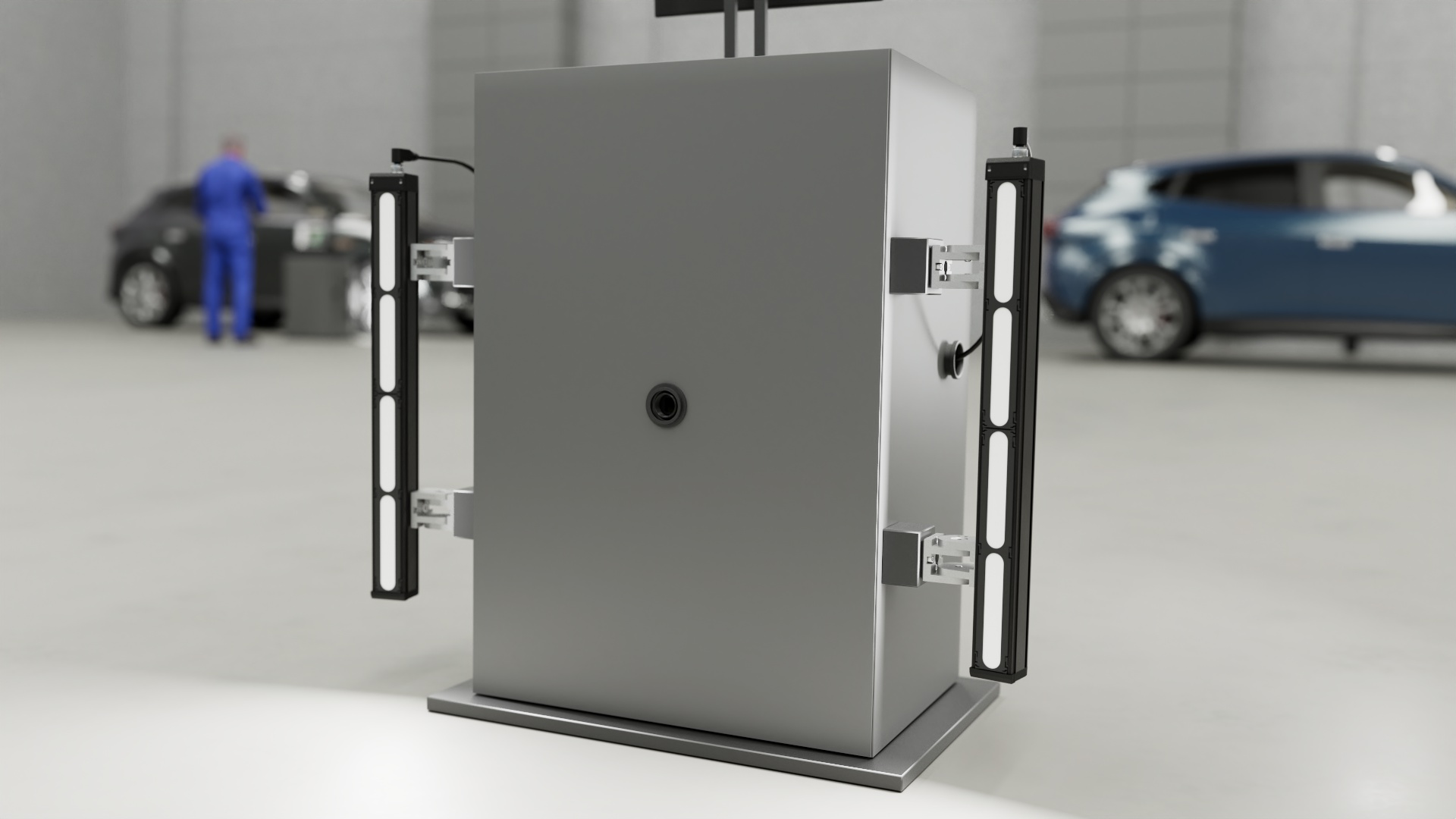

TPL Vision machine vision lighting systems combine high-performance LEDs, precision optics, and advanced diffusers to create optimal conditions for each application. The HPS Bar light is specifically engineered for demanding scenarios where high light output, short pulse durations, and uniform field coverage are non-negotiable, exactly the conditions that tire inspection demands. Available in multiple form factors and configurable for a wide range of inspection geometries, the HPS Bar integrates readily into both new and existing machine vision setups.
