Ring lights are composed of a circular array of LEDs. TPL Vision’s ring lights provide intense illumination suited to shadow-free bright field applications looking to illuminate objects uniformly. The camera can be mounted looking through the ring or to the side depending on the application, producing direct, diffuse or dark field lighting effects suited to various working distances.
Showing all 8 results

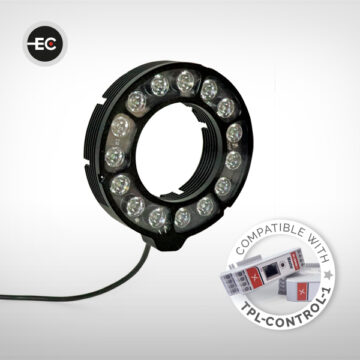

Our solution pairs high-intensity M-HPRING EC illumination with external controller TPL-CONTROL-1 to deliver a powerful and adaptable lighting solution for machine vision and automated inspection systems. Designed for demanding industrial environments, it enables precise adjustment of light output to support stable image acquisition across changing parts, surfaces and production conditions.
Built on a high-output circular lighting platform, the system supports multiple diffuser configurations that allow users to adapt illumination characteristics to different inspection challenges. Transparent configurations support maximum light transmission for general imaging and variable working distances, while diffusion-based options help reduce reflections on shiny or highly polished components. When paired with external illumination control, the system provides the flexibility to fine-tune lighting without hardware changes.
The M-HPRING EC is well suited to high-speed inspection, robotic guidance, code verification and automated quality control processes where consistent lighting is essential. By combining this strong optical output with the controllable operation modes of the TPL-CONTROL-1, it helps maintain stable image quality even in applications with varying surface reflectivity or dynamic production environments.

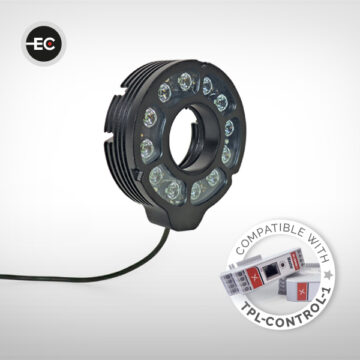

The M-TRING External Control (EC) merges compact ring illumination with smart output management from the TPL-CONTROL-1 to deliver a flexible lighting solution for machine vision and industrial imaging systems. Designed for applications where installation space is limited but lighting performance remains critical, it enables precise adjustment of illumination levels to support consistent and repeatable image capture across changing inspection conditions. The M-TRING can also be paired with other similar external machine vision controllers.
Built around a configurable ring illumination platform, the system supports multiple wavelength options and diffuser configurations, allowing it to adapt to a wide range of surface types, materials and reflectivity levels. When paired with advanced control electronics, users can fine-tune lighting behaviour without physically modifying the setup, helping to stabilise imaging results and reduce variation between production runs.
This makes the M-TRING EC well suited to automated inspection environments such as robotic guidance, component positioning, verification tasks and compact vision systems. By combining adaptable illumination with responsive control, it supports more reliable image acquisition in dynamic production environments where parts, surfaces or speeds may change.
Modular, high-power machine vision ring light with opaque or transparent diffuser options and beam angle flexibility. The M-HPRING is a versatile, robust IP67-rated LED ring light that gives users the power to easily customise their illumination output. With market-leading brightness and built-in OverDrive function, the M-HPRING’s 15 powerful LEDs provide intense lighting for the direct illumination of a circular area.
The M-HPRING is available in two versions (DO-opaque and DT-transparent). The transparent diffuser provides the most intense output and is effective at various working distances, while the opaque diffuser is ideal for inspecting shiny and reflective parts by effectively masking any visible LED hotspots. Perfect for robotics, code reading, quality inspection applications requiring powerful illumination.
Compact, modular machine vision ring light featuring both opaque and transparent diffuser options and Angle Changer flexibility. This versatile IP67-rated LED ring light allows users to easily customise their illumination output. With a built-in OverDrive function, the M-TRING’s 12 powerful LEDs deliver intense lighting, perfect for directly illuminating circular areas. Its lightweight and robust design ensures seamless integration with machine vision systems, cameras, and robot arms.
The M-TRING is available in two versions (DO-opaque and DT-transparent). The transparent version delivers the highest output and performs well at different working distances, while the opaque version excels at inspecting shiny, reflective parts by effectively concealing any visible LED hotspots. Ideal for precision machinery, robotics, 2D code reading, and small-scale quality inspection applications.
The MR-RING is a bi-colour LED illumination, available in 2 sets of colours and 2 dimensions. It has been designed with tough production environments in mind: IP65 as standard, overdrive embedded, simple remote control capability (selection of colours and quadrants). Direct light can be used when:
The MR-RING should be mounted so that the light shines directly onto the object of interest. Maximum illumination intensity will be achieved when the item is closest to the light. The camera can be mounted looking through the ring or to the side dependent on desired effect. The MR-RING can also be used for applications where a machine enclosure is being used to provide reflected diffused light. The MR-DOME version may also be appropriate.
The HPRING is a solid ring, equipped with 12 high powerful LEDs, very useful for the directive lighting of a circular area. Among TPL Vision’s products range, it definitely appears to be one of the most powerful lightings. At a distance of 1m, the standard version of the HPRING can light up a circular area of 550mm.
Its large internal diameter make it compatible with the largest camera’s objectives. The HPRING reveals all its potential in the field of robotics (for example, to locate the products during the packaging process) and also in the field of quality control.
Composed of 12 high powerful 405 nm UV LEDs, the HPRING UV is obviously one of the most powerful lights among TPL Vision’s products ranges. It is especially helpful for the direct lighting of circular areas, either in continuous mode or in strobe mode. Its large internal diameter makes it the ideal partner for professional cameras, including those equipped with large lenses. The HPRING UV is specialized in the detection of UV optical brighteners: thanks to the HPRING UV, you can easily control the assembly defects, highlight the materials lacks and also read the UV markings.
Equipped with 9 high powerful LEDs, the TRING is a miniature ring specially designed for the diffuse lighting of circular areas. It has a current control power supply that regulates the current intensity and consequently guarantees the lighting stability.
Thanks to its M12 connector, it can be easily connected to any kind of production lines. Either in continuous or in strobe mode, the TRING perfectly goes along with a camera dedicated to quality control tasks: code reading, presence/absence checking, surface control…
