LED lighting for machine vision

TPL Vision’s LED illuminations are used in industrial imaging systems across the world in machine vision, identification and robotics applications. Our extensive range contains modular solutions providing flexibility for users, as well as innovative products dedicated to quality control, code reading, traceability and other logistics applications. Among TPL Vision’s lighting products are bar lights, backlights, spot lights, ring lights, dome lights, low angle lights and more, all of which provide optimal illumination for a variety of application areas.

Showing 1–15 of 87 results

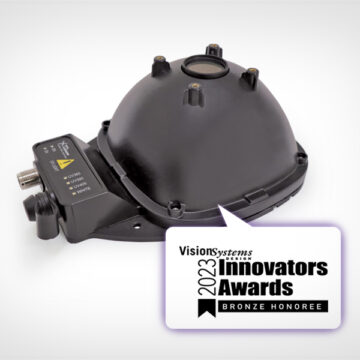

  • Fluorescence Imaging Solution

    • Intense Fluorescence dome light
    • Multi-UV + White
    • Integrated BP filter

    TPL Vision’s Fluorescence Imaging Solution (FIS) is a flexible multi-wavelength UV dome light suitable for authentication, traceability and fluorescence inspection applications. Due to its unique design that allows users to test and select multiple UV wavelengths (UV365, UV395 & UV405), the FIS is suitable for the inspection of bank notes and excise stamps, as well as inspecting various levels of UV security and brand protection features used on pharmaceutical products, electronics and luxury goods, including perfumes and aftershaves, tobacco and alcohol products, and designer-branded goods.

    Compatible with any visible spectrum camera, the FIS is an all-in-one UV solution that also maximises the safety of operators by blocking direct UV radiation through the dome and the integrated filter.

    • Powerful strobe with all current control integrated for easy setup
    • Homogeneous dome effect with proprietary finishing, suitable for complex surfaces like glass and shiny metals
    • Safe for operators thanks to dome & filter blocking all direct UV radiation
    • All-in-one UV solution with integrated LP415 filter, just place the camera
  • Collimated CSBACK

    • Compact collimated backlight
    • >90% surface uniformity
    • Sizes from 0.0025m² to 0.04m²

    TPL Vision’s collimated backlight, the CSBACK is the perfect illumination choice for the inspection or measurement of clear plastics and rounded parts. Collimated light by definition has parallel light rays, and therefore spreads minimally as it propagates, helping to create high-contrast images needed for precise edge detection and defect analysis.

    Key application areas include the inspection of objects with rounded edges and clear parts, which may be challenging to inspect with traditional backlights due to the lack of contrast. A collimated light allows users to eliminate this effect by providing a narrower illumination angle that stops the light from wrapping around rounded parts. This also means that images of clear parts no longer appear “washed out”. The edges are more clearly defined, and details are seen with improved contrast, leading to high-quality images and increased accuracy.

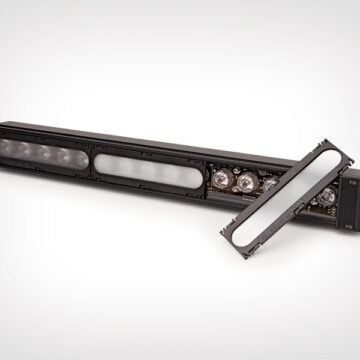

  • Modular M-EBAR

    • Modular bar light
    • Angle Changers flexibility
    • Sizes up to 500mm

    TPL Vision’s award-winning, patented Modular Bar light illumination provides universal solutions for pick-and-place, logistics, packaging and traceability applications.

    Combined with our Angle Changers, the Modular Bar can be configured to suit almost any machine vision application. Our products help thousands of customers globally to effectively and expertly illuminate industrial automation and logistics applications across many industries, from pharmaceutical, food and beverage manufacturing to the automotive industry, and much more.

    • Flexible and customisable
    • Cover all applications with just a few part numbers
    • Best balance of brightness and homogeneity


  • Essential EBAR+

    • High performance bar light
    • Angle Changers flexibility
    • Sizes up to 2500mm

    The Essential EBAR+ is a highly powerful LED light, very useful for machine vision applications requiring intense luminous flux. It can be set up downwards, in the same axis as the camera’s, or with an angle of incidence, to perfectly illuminate rectangular areas on a production line. The Essential EBAR+ is very easy to use: you don’t have to adjust anything, only to plug it. There are 2 functioning modes: continuous and strobe, with very short rising and falling times (15 μs and 10 μs). Its black aluminum structure, very robust, is IP65. It also helps to dissipate the heat generated by the LED. Moreover, 2 LED indicators near the connector show if the product is powered. Available in different colours (included IR and UV), the Essential EBAR+ exist in multiple lengths, from 125 mm to 1250 mm (Standard/Link) and up to 2500 mm (OverDrive).

    • HIGH POWER LED LIGHT,
    • RISING TIME: 15 μs,
    • SIZES UP TO 2.5m (OverDrive version)

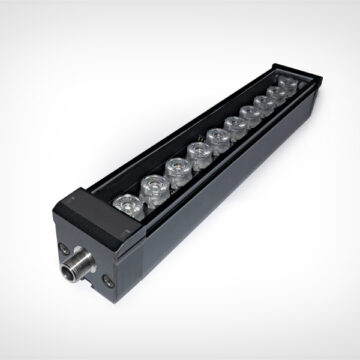

  • Essential EBAR+ UV 405

    • Powerful UV405 bar light
    • Lens options for different FoV
    • Sizes up to 1250mm

    The Essential EBAR+ UV 405 is a highly powerful LED light, very useful for machine vision applications requiring intense luminous flux. It can be set up downwards, in the same axis as the camera’s, or with an angle of incidence, to perfectly illuminate rectangular areas on a production line.

    The Essential EBAR+ UV 405 is very easy to use: you don’t have to adjust anything, only to plug it. There are 2 functioning modes: continuous and strobe, with very short rising and falling times (15 μs and 10 μs). Its black aluminum structure, very robust, is IP65. It also helps to dissipate the heat generated by the LED. Moreover, 2 LED indicators near the connector show if the product is powered.

    • HIGH POWER LED LIGHT
    • RISING TIME: 15 μs
    • FROM 17 CM TO 1 M 30

    UV INFO: in the light spectrum, UV (ultra violet) rays are electromagnetic radiations situated between 280 and 400 nm (visible radiations: between 400 and 800 nm). What makes UV very interesting is the fact that, even if it is invisible for the naked eye, it can be observed by fluorescence: when some bodies are submitted to UV wavelengths, they emit a visible light. This is the principle of black light and of counterfeit notes detection.

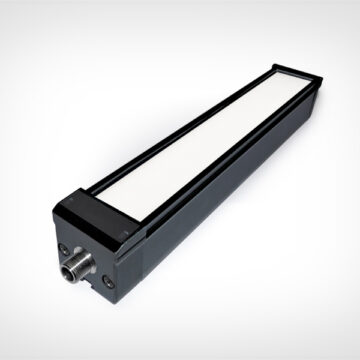

  • Backlight BLBAR+

    • Intense diffused bar light
    • Can be used as a backlight
    • Sizes up to 2500mm

    The Backlight BLBAR+ is a very powerful lighting solution, equipped with an opaque diffuser, that offers a perfect diffusion of the light on the whole surface, included on the edges. No hot spot to be noticed ! It’s the best camera’s partner for Web Inspection applications. The Backlight BLBAR+ is usually used as a traditional backlight, to make the workpieces shapes appear thanks to shadow puppet effects, but it can also be used as a direct diffuse light. Its black structure enables a good LED heat dissipation. The Backlight BLBAR+ is IP65 by default. 2 LED indicators near the connector show if the product is powered. As any other TPL Vision’s bars, you will also appreciate its solid aluminum structure and its easy fixing.

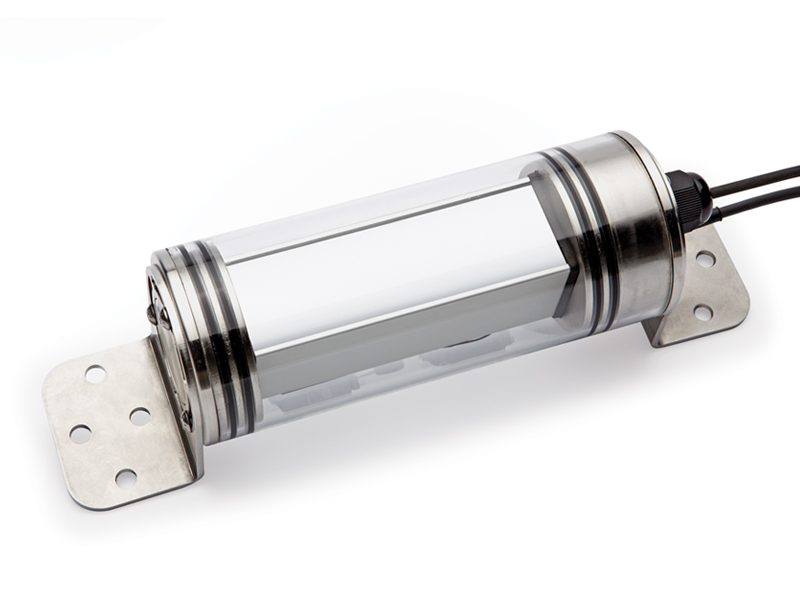

  • IP69K Washdown Barlights

    • EBAR+ washdown enclosure
    • Hygienic, easy to clean design
    • Sizes up to 1250mm

    IP69K washdown barlights provide high brightnessuniform illumination in a reliable package designed to withstand the rigours of harsh chemical cleaning & de-contamination.

    Our new Waterproof IP69K Washdown lights have some significant performance improvements over the older IP69K Food Bars:

    • 40% higher power: giving you reduced exposure times and higher production rates, or smaller apertures with larger depth of fields [8,185 lux at 0.5m (125mm bar), 14,650 lux (1250mm bar)]
    • 100 x faster rise & fall times [rise time now 15µs (was 1.5ms); fall time now 10 µs (was 1ms)]
    • New Dimming function [100% – 35% (with 0-10V), giving you more control of brightness]
  • IP69K Washdown Backlight Bars

    • BLBAR+ washdown enclosure
    • Hygienic, easy to clean design
    • Sizes up to 1250mm

    IP69K washdown backlight bars provide high brightnesshighly diffuse illumination in a reliable package designed to withstand the rigours of harsh chemical cleaning & de-contamination.

    Our new Waterproof IP69K Washdown lights have some significant performance improvements over the older IP69K Food Bars:

    • 40% higher power: giving you reduced exposure times and higher production rates, or smaller apertures with larger depth of fields [8,185 lux at 0.5m (125mm bar), 14,650 lux (1250mm bar)]
    • 100 x faster rise & fall times [rise time now 15µs (was 1.5ms); fall time now 10 µs (was 1ms)]
    • New Dimming function [100% – 35% (with 0-10V), giving you more control of brightness]
  • High Power HPBACK

    • Powerful homogeneous backlight
    • Custom sizes to nearest centimetre
    • Sizes from 0.04m² to 0.81m²

    The HPBACK is a high-power backlight solution for Machine Vision applications.

    This product is the next evolution of TPL Vision’s high running MBACK+ Standard product, carrying significant product enhancements.

    Including: brightness level up to 45 kLux*, new connector making it easier and more cost effective to integrate, improved rising and falling times of 15μs and 10μs respectively and custom sizes available in 1cm steps (from 200 x 200mm up to 500 x 500mm or 1000 x 200mm).

    The robust Aluminium casing of the product can be manufactured to sizes from 200 x 200mm up to 900 x 900mm or 1900 x 400mm. This range topping backlight solution is perfect for high speed backlighting applications that require intense luminous flux. Available in Red, White and Infrared, all with extremely high brightness and surface homogeneity of up to 85%. This is the solution for all backlighting applications and quality control tasks, such as: presence/absence, analysing edge defects, liquid fill level measurement and silhouetting.

    • BRIGHTNESS INCREASE UP TO 45 kLux*
    • CONNECTOR M12 5 PIN
    • REMOTE DIMMING CONTROL
    • CUSTOM SIZES AVAILABLE IN 1 CM STEPS

    (* in continuous working, measured at the surface with the WHITE LED version of the product).

  • Collimated Medium CMBACK+

    • Large area collimated backlight
    • OverDrive option available
    • Sizes from 0.04m² to 0.16m²

    The Collimated Medium CMBACK+ is a powerful and very diffuse backlight, dedicated to many machine vision applications. With high powerful LED and specific lenses, it creates a very intense illumination, that helps cameras to clearly see workpieces shapes.

    The Collimated Medium CMBACK+ is also manufactured with filters, which eliminate the non-perpendicular light (>30° compared to the vertical axis of the lighting surface). This collimation helps to get highly contrasted images. This is why this product is recommended for the edge detection of round or thick workpieces, and also for the detection of markings or material defects on transparent workpieces (made of glass or plastic).
    The CMBACK + is equipped with a strobe entry and a potentiometer, which enables to vary the lighting power. The OVERDRIVE version can also offer a far higher lighting power. Either in continuous or in strobe mode, it has short rising and falling times: 25 μs and 15 μs. Thanks to its thin edges, the Collimated Medium CMBACK+ uniformly illuminates the whole surface analysed. Moreover, the connector can be placed on any side of the light, making it easy to set it up on any kind of conveyor belts. In the base of the connector, 2 LED show if the product is powered and if the strobe mode is on. The Collimated Medium CMBACK+ is available in various wavelengths and also in various dimensions.
    • HOMOGENEOUS POWERFUL BACKLIGHT,
    • ULTRA-THIN BORDERS,
    • RISING TIME: 25 μs.
  • Medium MBACK+ OverDrive

    • OverDrive strobe backlight
    • Dimming via potentiometer
    • Sizes from 0.04m² to 0.81m²
    The Medium MBACK+ Overdrive is a backlight both powerful and very diffuse, dedicated to many machine vision applications. Thanks to the high power LED inside, it creates intense luminous flux, that helps cameras to see the workpieces shapes thanks to the shadow puppet effects. You can even decrease the light power when necessary. It works in continuous and strobe mode, with very short rising and falling times25 μs and 15 μs. Equipped with very thin edges, the Medium MBACK+ uniformly illuminates from the whole useful surface, included from the edges. No hot spot to notice !
    • HOMOGENEOUS & POWERFUL,
    • ULTRA-THIN BORDERS,
    • RISING TIME: 25 μs.

    The connector can be placed on any side of the MBACK+, which can then be set up on any kind of conveyor belts. At the basis of the connector, 2 LED indicators show if the product is powered and if the strobe mode is on. The MBACK+ is perfectly adapted to quality control tasks, such as: presence/absence, edge defects, material lack. It can also be used as a direct diffuse lighting solution, to inspect shiny workpieces.

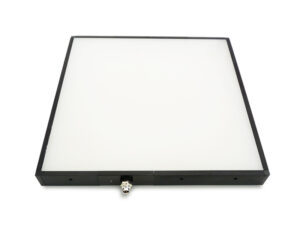

  • Small SBACK II

    • Compact homogeneous backlight
    • >90% surface uniformity
    • Sizes from 0.0025m² to 0.04m²

    Thanks to its thin borders, the new SMALL SBACK II is a backlight both powerful and homogeneous, that perfectly fits confined spaces. Settled under the objects to be controlled, the SMALL SBACK II highlights the global shape of the objects (shadow puppet effect), which enables the verification of possible outline defects and material lacks.

    Equipped with new LED, it offers a lighting power 4 to 5 times higher than in the previous version for the white and red colours (WHI & 630).
    Its homogeneity has also been improved on the entire surface, including the backlight edges, so as to prevent the appearance of hot spots. The new SMALL SBACK II works in continuous and strobe mode, and is equipped with a M12 connector that suits the industrial standards.

    • VERY POWERFUL LEDS,
    • INCREASED HOMOGENEITY,
    • LIGHT & COMPACT BACKLIGHT.



  • Black & Light (Bn’L)

    • Uniform backlight when ON
    • Matte background when OFF
    • Sizes from 0.04m² to 0.81m²

    Many machine vision systems are not made of 1 single light, but of many different illuminations. And, quite often, LED panels can disturb the camera and the other lights efficiency, because they are equipped with a white diffuser, when a dark background would be required.   The Black & Light (Bn’L) by TPL Vision is an innovative solution, that can be integrated in most applications. Equipped with high brightness LEDs, once it is switched on, it perfectly highlights the shape of the products you need to control.   And, as soon as it is off, it becomes a dark background, that helps the other illuminations to work properly. Moreover, the matt materials help to absorb the extra light, and to enhance the inspection process. The Black & Light is available in Standard, Overdrive versions.

    • MATT DIFFUSER = BLACK BACKGROUND,
    • ULTRA THIN BORDERS,
    • RISING TIME : 25 μs.
  • Led Brick

    • OEM backlight solution
    • Link multiple in a row
    • Continuous or strobe operation

    Equipped with 4 high powerful LEDs, the LED BRICK modules by TPL Vision can be easily  interconnected. You just have to plug few modules of LED BRICK all together to get very large lighting areas, easily upgradable according to the vision application’s features. If you just add an opaque diffuser on the top of the configuration, you get a perfectly homogeneous backlight, very appreciated by machine vision specialists. The LED BRICK lighting solutions can rely on the LED advanced technology at very affordable prices.

    • EXTENDABLE AND UPGRADABLE SOLUTIONS,
    • EASY-TO-USE,
    • CONTINUOUS OR STROBE MODE.
  • Modular Ringlight

    • Powerful, modular ring light
    • OverDrive, sectors, bicolour
    • Dome + Low Angle accessories

    The MR-RING is a bi-colour LED illumination, available in 2 sets of colours and 2 dimensions. It has been designed with tough production environments in mind: IP65 as standard, overdrive embedded, simple remote control capability (selection of colours and quadrants). Direct light can be used when:

    • objects do not reflect light (matt surface),
    • objects require maximum illumination brightness (e.g. fast moving items),
    • objects where shadows are not going to be present or cause problems.

    The MR-RING should be mounted so that the light shines directly onto the object of interest. Maximum illumination intensity will be achieved when the item is closest to the light. The camera can be mounted looking through the ring or to the side dependent on desired effect. The MR-RING can also be used for applications where a machine enclosure is being used to provide reflected diffused light. The MR-DOME version may also be appropriate.

END OF LIFE PRODUCTS

The products below are no longer recommended for new projects.

If you need documentation for the TRINITI or EXPERT versions of:

  • EBAR+, BLBAR+, SBAR, TSPOT 1, TSPOT 4, HPRING, TRING, MBACK+, SBACK II, SDOME II, MFDOME+, Low Angle II

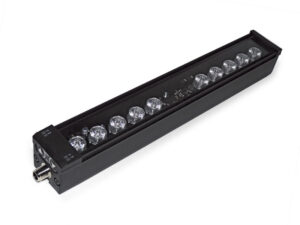

EBAR Curve

Available until 01/01/2031

Homogeneity on the total surface.

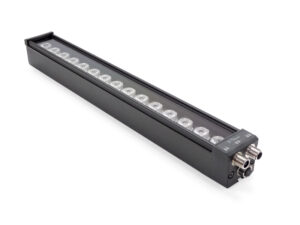

EBAR Logistix

Available until 01/01/2031

High power specific bar, dedicated to logistics.

Lite Lbar+

Available until 01/01/2031

Affordable and very powerful LED illumination.

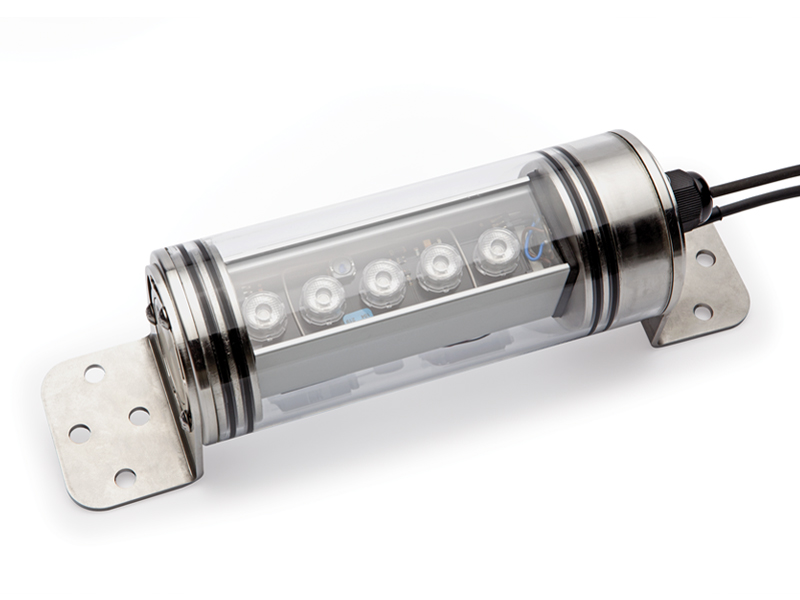

EBAR ip69K

Available until 31/05/2030

High power LED light for food industry.

BLBAR ip69K

Available until 31/05/2030

Powerful & diffuse light for food industry.

Essential EBAR

Available until 01/11/2024

Easy to use and powerful illumination.

ESSENTIAL EBAR UV

Available until 01/11/2024

Easy to use and powerful UV light.

BACKLIGHT BLBAR

Available until 01/11/2024

Diffuse and backlight illumination.

CLASSIC XBAR

Available until 01/11/2024

High power LED illumination, with settings.

CLASSIC XBAR UV

Available until 01/11/2024

High power UV illumination, with settings.

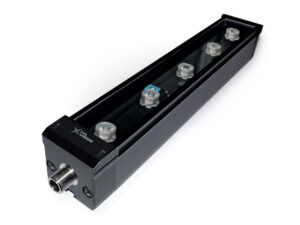

LITE LBAR

Available until 01/11/2024

Affordable powerful light.

LRBAR

Available until 01/11/2024

Extendable bar light solution.

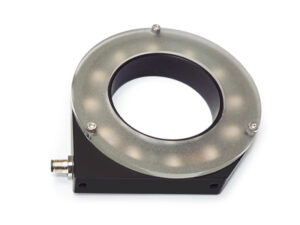

TINY'Z AD

Available until 01/11/2025

Tiny flat ring light, no current control inside.

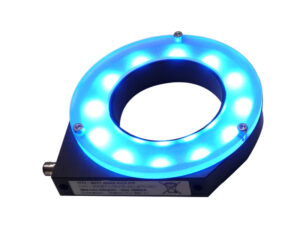

TINY'Z AD RGB

Tiny flat ring light, no current control.

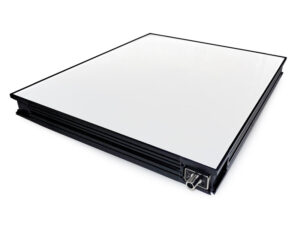

MBACK+ Standard

Available until 01/01/2031

Powerful and very homogeneous backlight.

MEDIUM MBACK

Available until 01/11/2024

Powerful medium backlight.

LARGE LBACK

Available until 01/11/2024

Powerful large backlight.

SMALL SBACK

Available until 01/01/2031

Powerful and very homogeneous backlight.

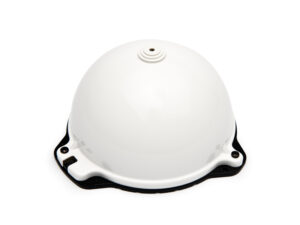

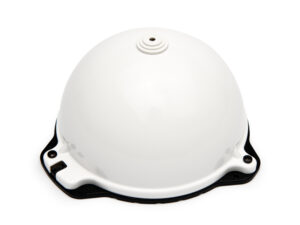

SMALL SDOME 80

Available until 01/03/2023

Small dome light.

SMALL SDOME 130

Available until 01/03/2023

Small dome light.

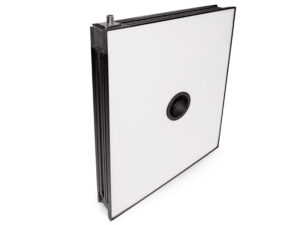

MFDOME+ STANDARD

Available until 01/01/2031

Powerful and very homogeneous flat dome.

LARGE FLAT LFDOME

Available until 01/11/2024

Large panel, dedicated to large cameras.

MEDIUM FLAT MFDOME

Available until 01/11/2024

Medium panel, dedicated to large cameras.

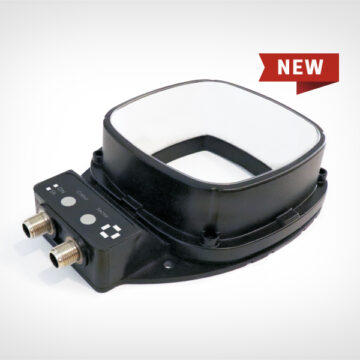

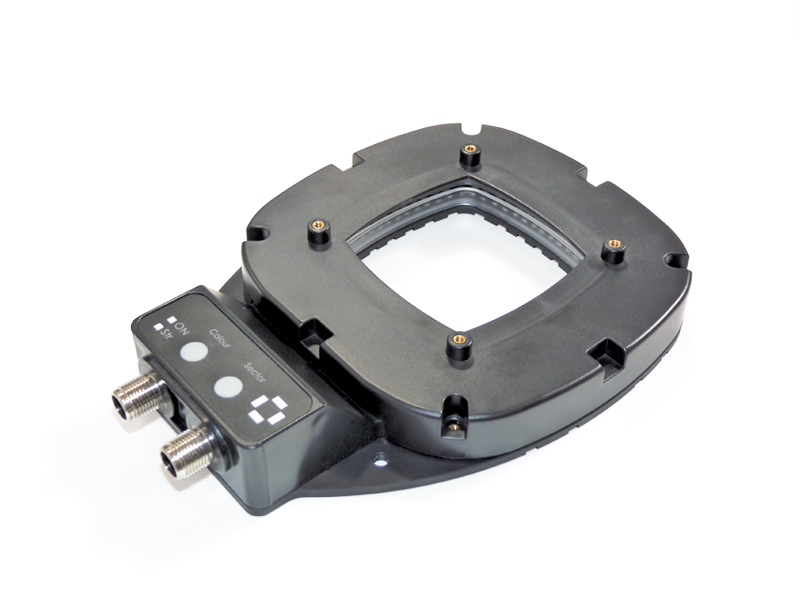

MR-DARK FIELD

Available until 01/10/2030

High power dark field light (80 &130 mm).

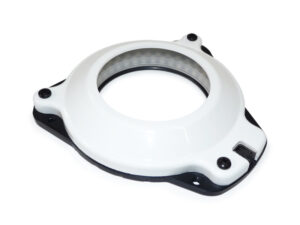

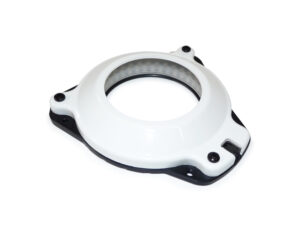

LOW ANGLE 80

Available until 01/03/2023

Powerful low angle illumination.

LOW ANGLE 130

Available until 01/03/2023

Powerful low angle illumination.

S-COAX

Available until 31/12/2022

Coaxial light.
