Low angle lights

Low Angle lighting refers to illuminating an area with a low angle of incidence to the target surface. This effect is excellent for highlighting edges, scratches and markings on parts that contain such features. TPL Vision’s low angle lights are dedicated to easily create this dark field effect. The advantage of such a light is the ability show excellent contrast on some very challenging materials such as glossy plastics and shiny metals, which are typically a challenge to illuminate by direct (or bright field) illumination.

Showing all 3 results

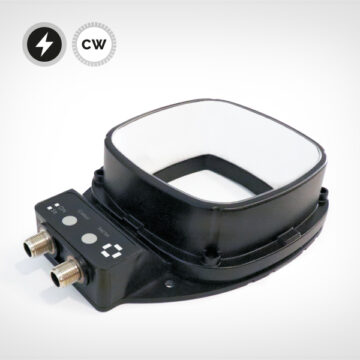

  • MR-Low Angle

    • Powerful 45° low angle light
    • OverDrive, sectors, bicolour
    • 80mm and 130mm IntØ

    The MR-LOW ANGLE is compound of a bi-colour LED lighting ring (2 sets of colours and 2 dimensions) and a low angle reflector, with an angle of incidence of 45°.

    It has been designed with tough production environments in mind: IP65 as standard, overdrive embedded, simple remote control capability (selection of colours and quadrants).

    It is used for applications where a direct light source is considered too harsh or bright but the diffused light provided by the Dome version is not enough intensity. The light source will provide some degree of homogeneity.

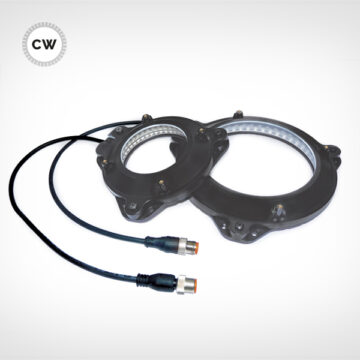

  • Low Angle II

    • Simple low angle light
    • Current control integrated
    • 80mm and 130mm IntØ

    The LOW ANGLE II provides a darkfield lighting, very popular among industrial vision professionals. Equipped with new leds, this version is 4 to 5 times more powerful than the previous version (as far as white and red leds are concerned). Placed closely to the surface, it provides an homogeneous lighting with a low incidence angle.

    The LOW ANGLE II can detect any kind of reliefs on flat surfaces. It turns out to be very useful to check engravings and to highlight edges, holes and cracks.

    The LOW ANGLE II can be easily set up on a production line, thanks to the M12 connector. The two versions (80 and 130 mm) can cope with the most demanding industrial standards, either in continuous or in strobe mode.

  • Square Light

    • Adjustable RGB Lighting
    • 4 independent bars
    • Flexible lighting angles

    TPL Vision’s SQUARE LIGHT is renowned for its modularity : compound of 4 independent swiveling bars, it can be used in directive or darkfield lighting. The SQUARE LIGHT works in RGB, what can be very useful when the pieces to be lighted evolve over time, regarding the shape and the colours.

    The SQUARE LIGHT is recommended to read codes, references and best before dates. Its is also particularly indicated to increase the contrasts of coloured products, coming from the perfume world, the food industry and the pharmaceutical sector.
