Medium MFDOME+ OverDrive

Both powerful and very diffuse, the Medium Flat MFDOME+ Overdrive can deal with many machine vision applications. The MFDOME+ has been designed to detect small pieces in a container, to highlight thermoformed products or also to improve contrasts on workpieces made of several materials. It works in continuous and strobe mode, with very short rising and falling times: 25 μs and 15 μs.

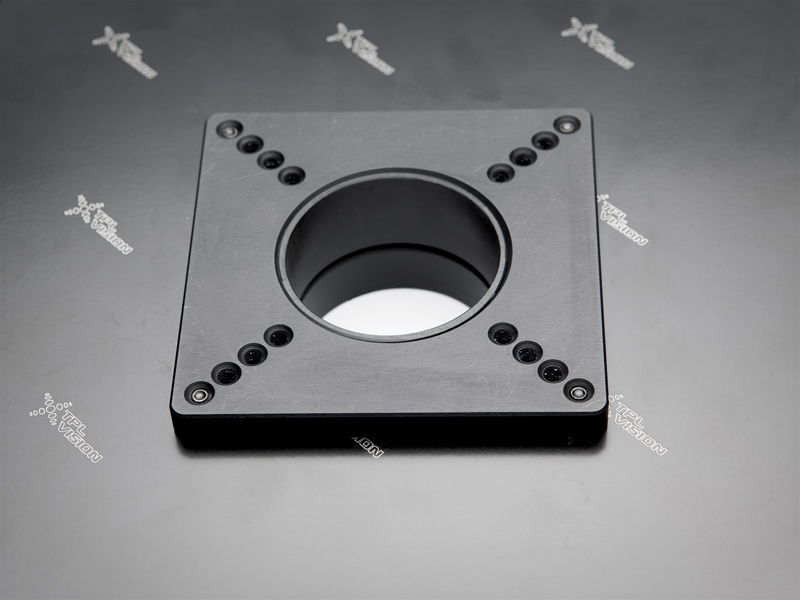

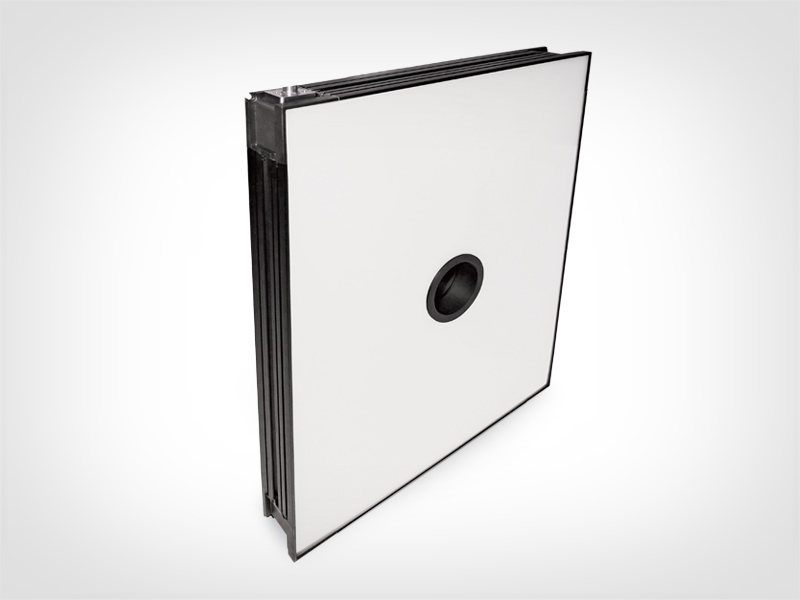

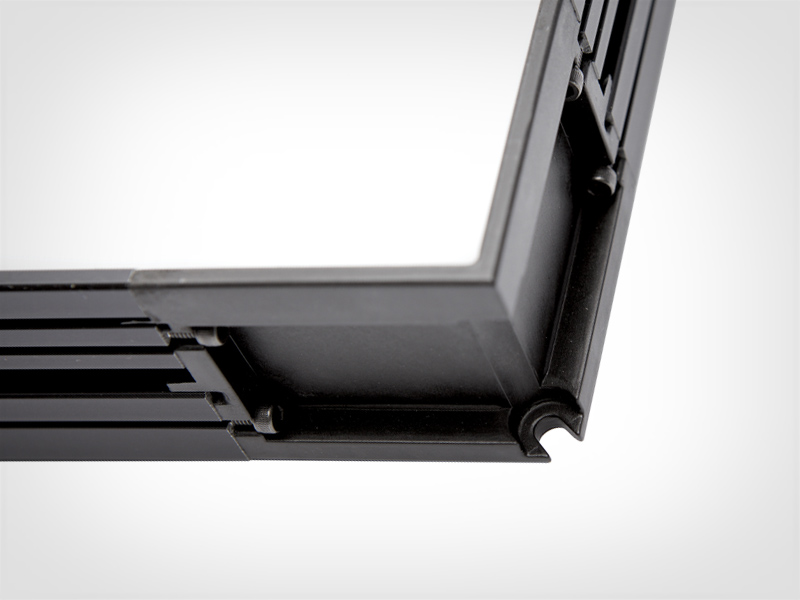

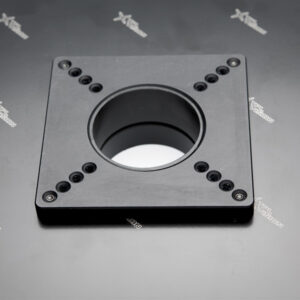

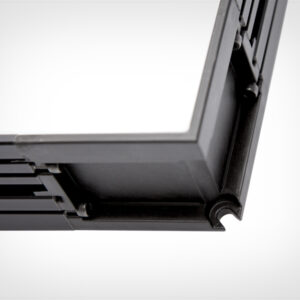

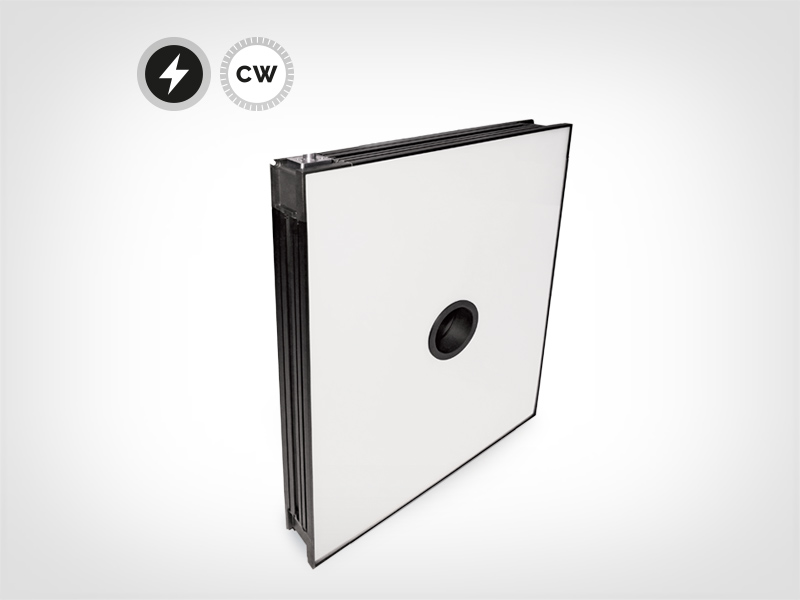

Equipped with very thin borders, the MFDOME+ uniformly illuminates from the whole useful surface, included from the edges. No hot spot to notice ! Very thin, the MFDOME+ gets a hole in the middle to insert the camera’s lens.  And using the TPL Vision mounting accessories (in option), you can easily integrate it thanks to the mounting plate.

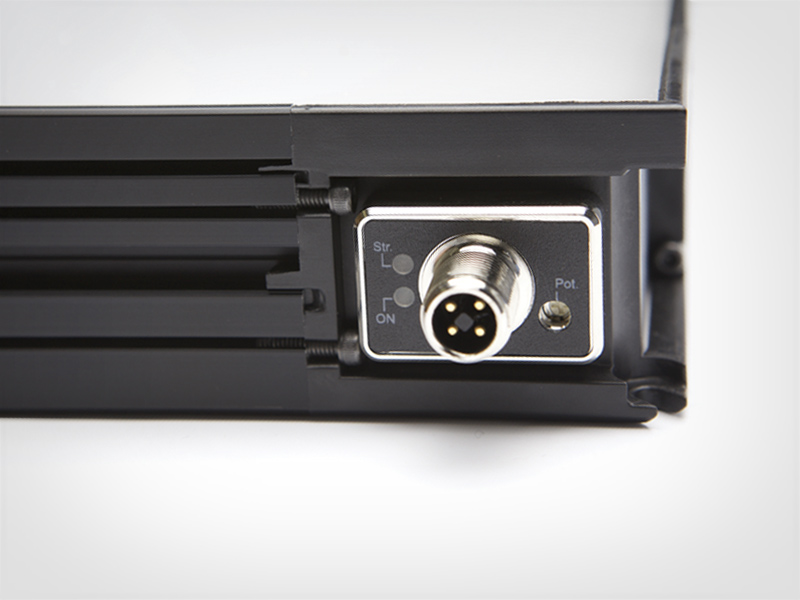

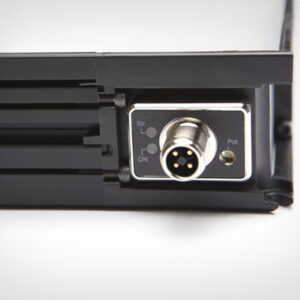

The connector can be placed on any side of the MFDOME+, which can then be set up on any kind of conveyor belts. At the basis of the connector, 2 LED indicators show if the product is powered and if the strobe mode is on.

  • POWERFUL FLAT DOME,
  • ULTRA-THIN BORDERS,
  • RISING TIME: 25 μs.

Technical information

To view all the technical information, please click on the tabs below.

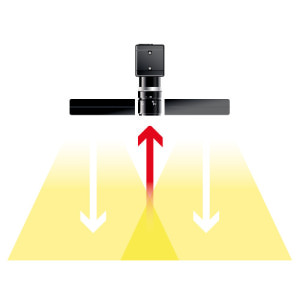

Lighting method

Flat dome comparison

MFDOME+HPFDOME
Sizes200×200 mm to 900×900, or 1900 x 400mm200×200 mm to 900×900, or 1900 x 400mm
ModesContinuous and Strobe OverDriveContinuous and Strobe
Brightness levelUp to 32 kLux in CW
Up to 61 kLux in OverDrive
Up to 45 kLux in CW
Rise and fall time25 μs and 15 μs15μs and 10μs
OverDriveYesNo
ConnectorM12 T-Power 4-PM12 5-P with remote dimming control
Connector positionFlexible, see technical sheetFlexible, see technical sheet
IP ProtectionIP40IP40
Customisation optionsNoCustom sizes available in 1 cm steps. Two-hole version available on request.

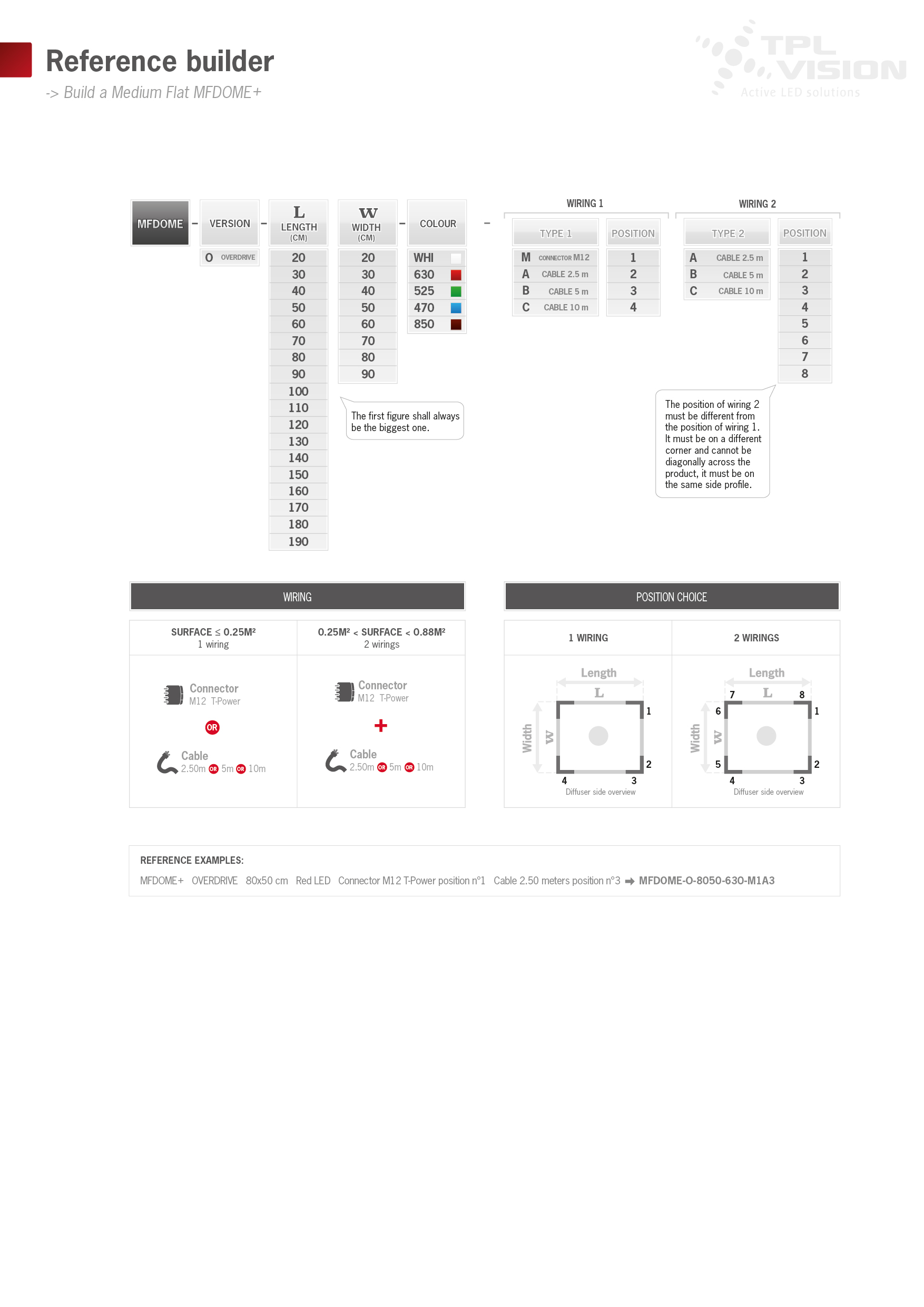

Reference builder

The connector can be placed on any side of the MFDOME+, which can then be set up on any kind of conveyor belts. At the basis of the connector, 2 LED indicators show if the product is powered and if the strobe mode is on.

  • POWERFUL FLAT DOME,
  • ULTRA-THIN BORDERS,
  • RISING TIME: 25 μs.

Technical information

To view all the technical information, please click on the tabs below.

Lighting method

Flat dome comparison

MFDOME+HPFDOME
Sizes200×200 mm to 900×900, or 1900 x 400mm200×200 mm to 900×900, or 1900 x 400mm
ModesContinuous and Strobe OverDriveContinuous and Strobe
Brightness levelUp to 32 kLux in CW
Up to 61 kLux in OverDrive
Up to 45 kLux in CW
Rise and fall time25 μs and 15 μs15μs and 10μs
OverDriveYesNo
ConnectorM12 T-Power 4-PM12 5-P with remote dimming control
Connector positionFlexible, see technical sheetFlexible, see technical sheet
IP ProtectionIP40IP40
Customisation optionsNoCustom sizes available in 1 cm steps. Two-hole version available on request.

Reference builder
