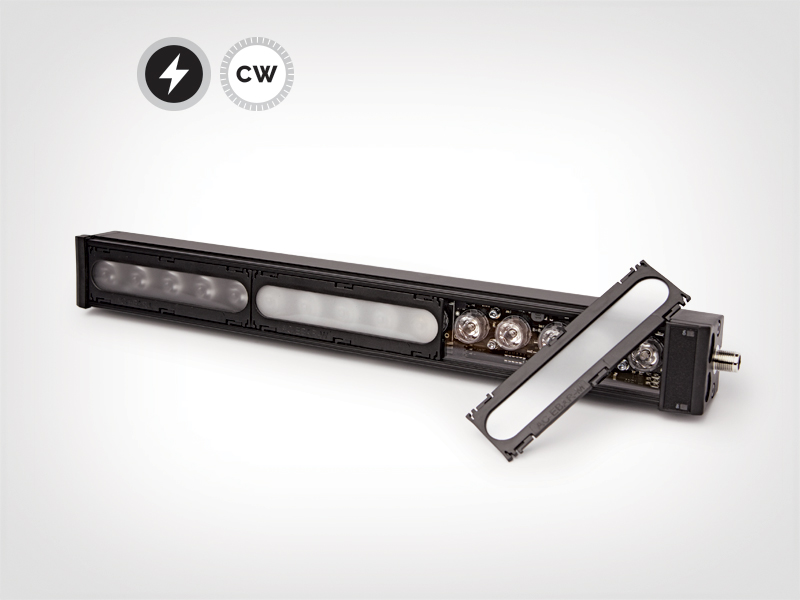

Modular M-EBAR

TPL Vision’s award-winning, patented Modular Bar light illumination¬†provides universal solutions for pick-and-place, logistics, packaging and traceability applications.

Combined with our Angle Changers, the Modular Bar can be configured to suit almost any machine vision application. Our products help thousands of customers globally to effectively and expertly illuminate industrial automation and logistics applications across many industries, from pharmaceutical, food and beverage manufacturing to the automotive industry, and much more.

  • Flexible and customisable
  • Cover all applications with just a few part numbers
  • Best balance of brightness and homogeneity


Product introduction


Key features

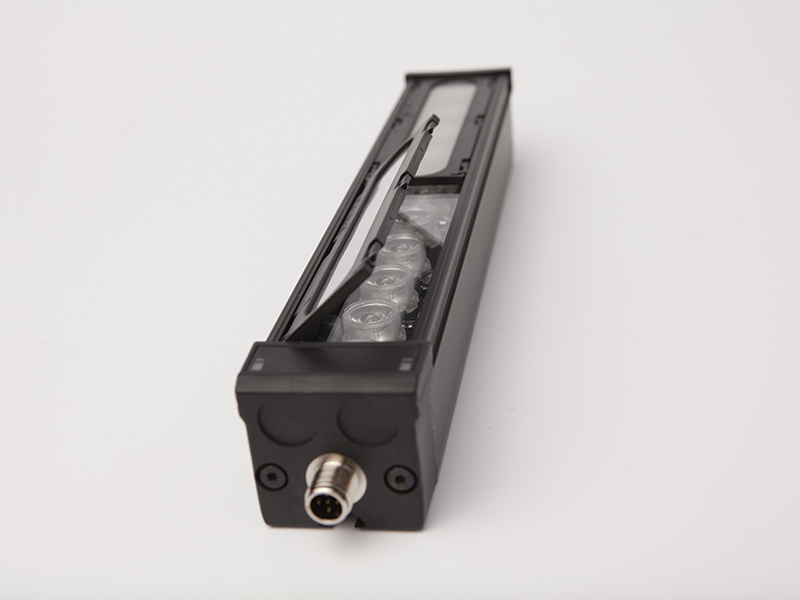

  • Plug & light with a universal M12 connector
  • Adaptable to most cameras on the market
  • Auto-Overdrive: create up to 4x brightness of continuous mode with trigger inputs of <30 ms

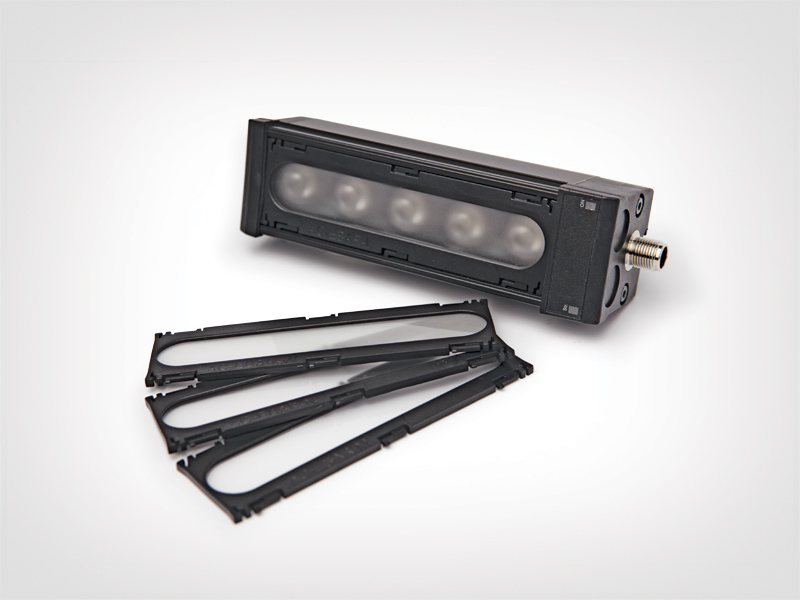

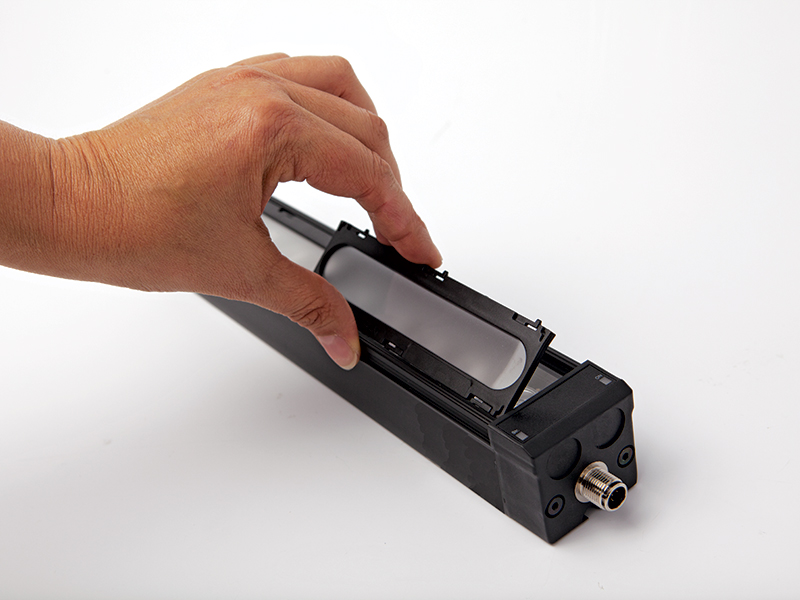

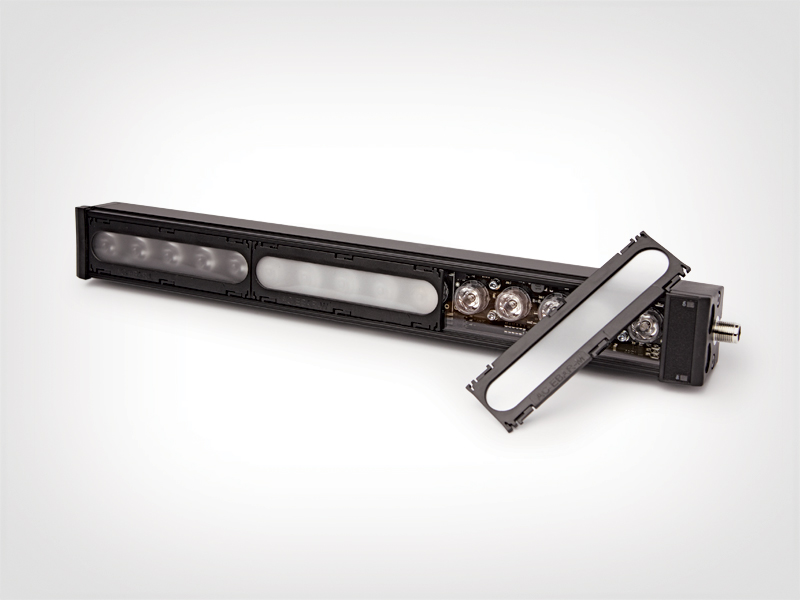

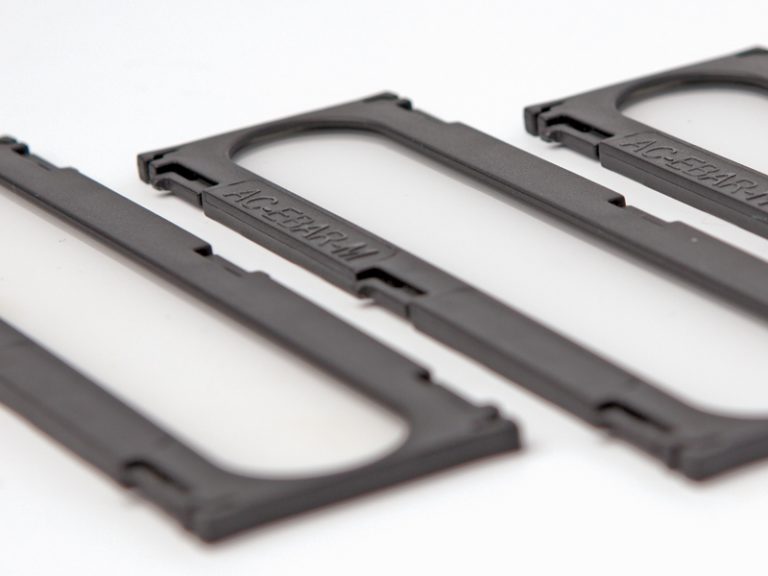

CLIP ANGLE CHANGERS
4 ANGLE OPTIONS

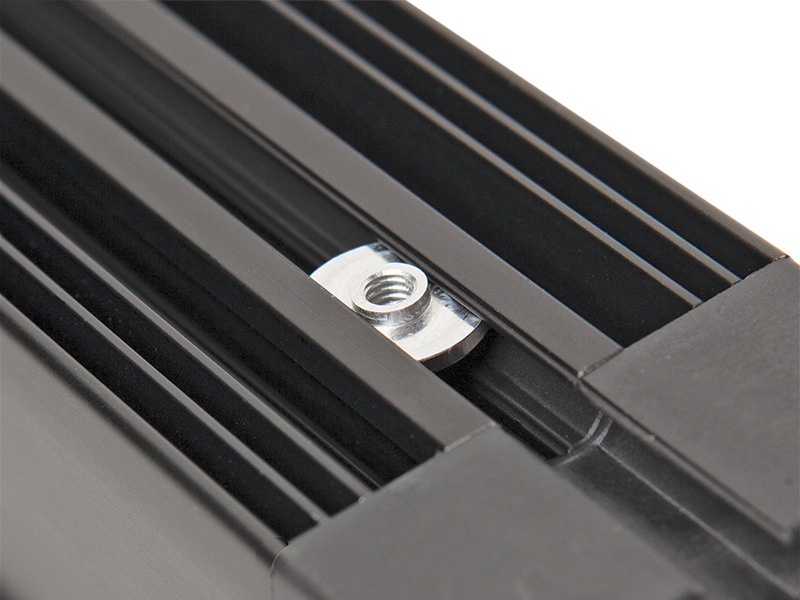

CAPTIVE NUTS

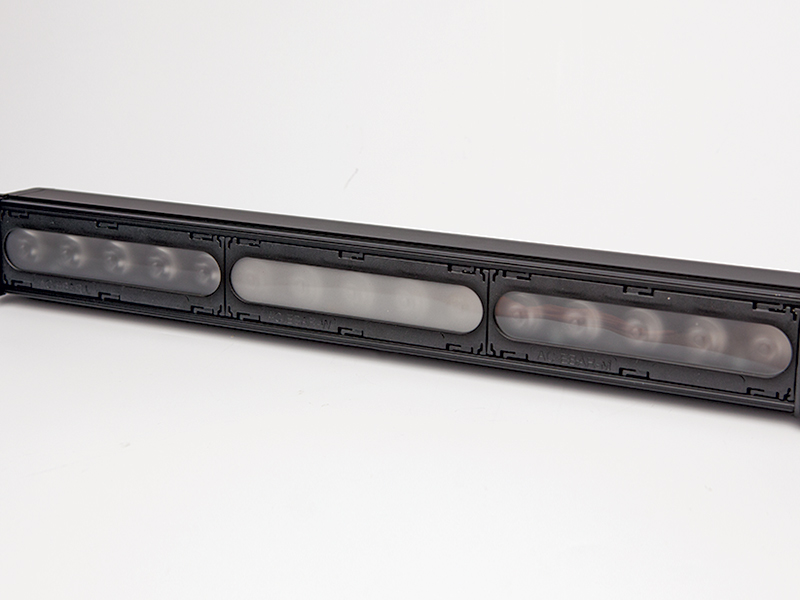

VARIOUS EFFECTS

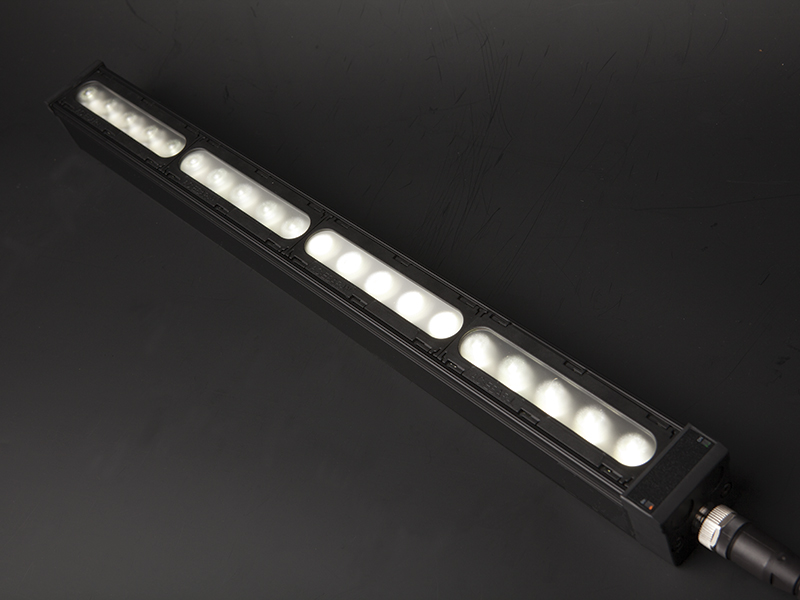

Curve Effect

Do your inspection applications suffer from hot spots in the middle? Do you struggle to illuminate large FoVs uniformly? Our patented Curve Effect can help you solve these problems in no time.

The Curve Effect is an extremely powerful tool for creating excellent uniformity and homogeneity over a large FoV and long working distances using a bar light with variable intensity across its length.

Innovators Award winner

The Vision Systems Design Innovators Awards program recognises the most innovative products and services in the vision and image processing industry. The Modular Bar & Angle Changers won a Silver award in 2021.

Technical information

To view all the technical information, please click on the tabs below.

Lighting method

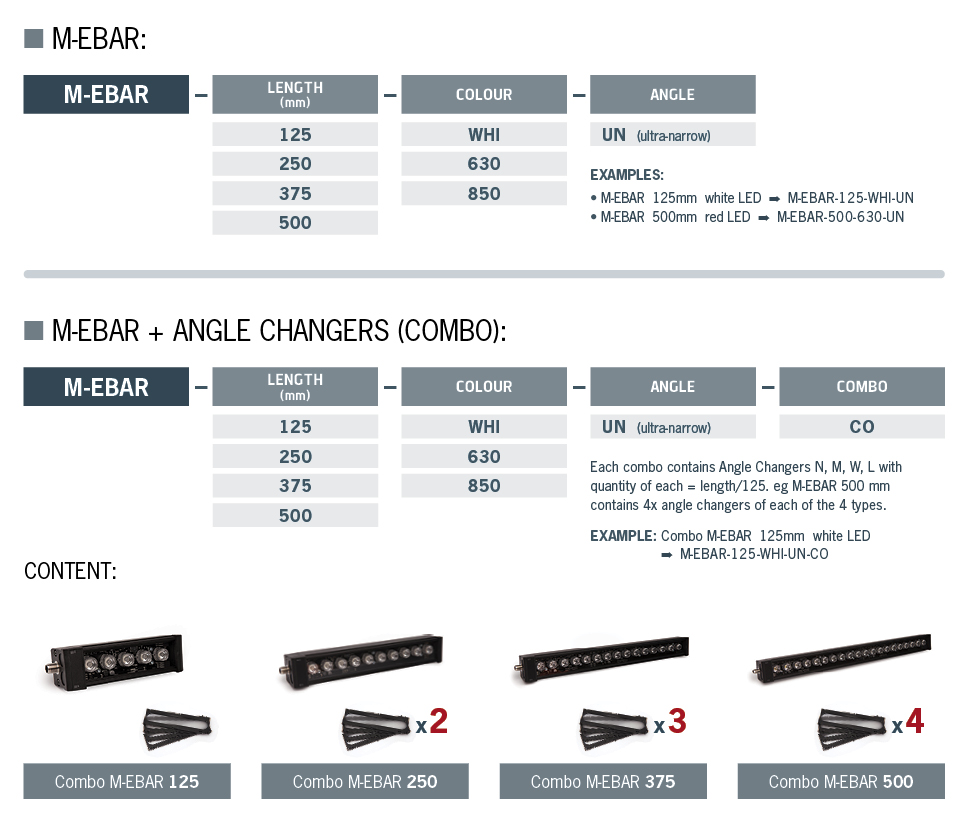

Reference builder
