LED lighting for machine vision

TPL Vision’s LED illuminations are used in industrial imaging systems across the world in machine vision, identification and robotics applications. Our extensive range contains modular solutions providing flexibility for users, as well as innovative products dedicated to quality control, code reading, traceability and other logistics applications. Among TPL Vision’s lighting products are bar lights, backlights, spot lights, ring lights, dome lights, low angle lights and more, all of which provide optimal illumination for a variety of application areas. Get a quick overview thanks to the synoptic document.

Showing 106–109 of 109 results

  • SPEED SCONTROL

    The Speed SCONTROL enables the power supply of lightings similar to ThinLED, in 700 mA with very short rising and falling times. It works only in strobe mode, and cannot be customised. Even with very short shooting times, the user can easily synchronise the lighting with the camera. The strobe input being optocoupled, the triggering system is isolated from the rest of the internal electronics. As soon as there is a positive voltage between + Strobe and – Strobe, the Speed SCONTROL lights the led system. To gain additional speed, the regulation is made through linear regulators. The latter absorb excess energy, so as to offer the most relevant current/voltage ratio for the lighting. The Speed SCONTROL is protected against polarity reversal in inputs, so as to avoid any risk of destruction because of wrong connections.

    • FAST STROBE MODE,
    • CURRENT : 700 MA,
    • NO SETTING,
    • NEW CASING, MORE ERGONOMIC.
  • TPL DRIVE RGB

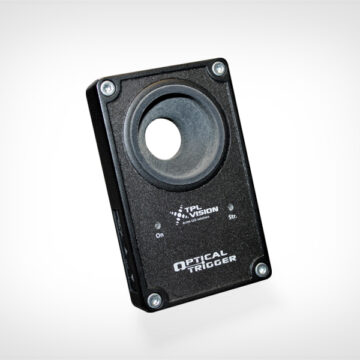

  • Optical Trigger

    Discover TPL Vision’s new Optical Trigger, a very ingenious tool that will save you time in your integration. It’s not complicated anymore to add an external illumination on a smart camera.   With the Optical Trigger, any camera with built-in illumination can now easily communicate with TPL Vision lights without the need for wiring. Place the Optical Trigger in front of the camera: as soon as the built-in illumination of the camera is on, the Optical Trigger automatically switches the external lighting on synchronously. The Optical Trigger is very responsive: it has very short rising and falling times (4 µs).

  • Protection glasses

    TPL Vision encourages all LED lighting users to take maximum protection measures. In that respect, the company distributes protective glasses, designed to offer an optimized protection on a wide lighting spectrum: from 350 nm to 1 000 nm, what covers all wavelengths used by TPL Vision to build its led lightings.

    • PROTECTION ON A SPECTRUM FROM 350 NM TO 1 000 NM,
    • STEAM RESISTANCE,
    • OPERATING TEMPERATURES BETWEEN -5°C AND +55°C,
    • ADJUSTABLE FRAME IN LENGTH,
    • SIDE PROTECTIONS.
END OF LIFE PRODUCTS

The products below are no longer recommended for new projects. Please note that availability dates of End of Life products are based on component availability and TPL Vision reserves the right to change these without further notice.

If you need documentation for the TRINITI or EXPERT versions of:

  • EBAR+, BLBAR+, SBAR, TSPOT 1, TSPOT 4, HPRING, TRING, MBACK+, SBACK II, SDOME II, MFDOME+, Low Angle II

EBAR Curve

Available until 01/01/2031

Homogeneity on the total surface.

EBAR Logistix

Available until 01/01/2031

High power specific bar, dedicated to logistics.

Lite Lbar+

Available until 01/01/2031

Affordable and very powerful LED illumination.

EBAR ip69K

Available until 31/05/2030

High power LED light for food industry.

BLBAR ip69K

Available until 31/05/2030

Powerful & diffuse light for food industry.

Essential EBAR

Available until 01/11/2024

Easy to use and powerful illumination.

ESSENTIAL EBAR UV

Available until 01/11/2024

Easy to use and powerful UV light.

BACKLIGHT BLBAR

Available until 01/11/2024

Diffuse and backlight illumination.

CLASSIC XBAR

Available until 01/11/2024

High power LED illumination, with settings.

CLASSIC XBAR UV

Available until 01/11/2024

High power UV illumination, with settings.

LITE LBAR

Available until 01/11/2024

Affordable powerful light.

LRBAR

Available until 01/11/2024

Extendable bar light solution.

TINY'Z AD

Available until 01/11/2025

Tiny flat ring light, no current control inside.

TINY'Z AD RGB

Tiny flat ring light, no current control.

MBACK+ Standard

Available until 01/01/2031

Powerful and very homogeneous backlight.

MEDIUM MBACK

Available until 01/11/2024

Powerful medium backlight.

LARGE LBACK

Available until 01/11/2024

Powerful large backlight.

SMALL SBACK

Available until 01/01/2031

Powerful and very homogeneous backlight.

MFDOME+ STANDARD

Available until 01/01/2031

Powerful and very homogeneous flat dome.

LARGE FLAT LFDOME

Available until 01/11/2024

Large panel, dedicated to large cameras.

MEDIUM FLAT MFDOME

Available until 01/11/2024

Medium panel, dedicated to large cameras.

MR-DARK FIELD

Available until 01/10/2030

High power dark field light (80 &130 mm).

tpl square light

SQUARE LIGHT RGB

Available until 01/07/2027

Fully adjustable RGB light (4 independent bars)

DISCONTINUED PRODUCTS

The products below are discontinued. Please get in touch to find the closest equivalent.

WATERPROOF WBAR

Waterproof stainless steel illumination.

WATERPROOF WLBAR

Affordable waterproof stainless steel illumination.

SPOT SP1

Classic spot lighting with spot design.

SPOT SP1 UV​

Classic UV spot illumination with spot design.

TINY'Z, TINY'Z C​

Tiny ring light with current control.

ANNU 12 INOX

Powerful ring light with stainless steel body.

LARGE LDOME UV

High power UV large dome.

S-COAX UV

UV coaxial light.

TUNNEL

Tunnel lighting.

XBAR KIT PROTECTOR

Bar kit protector for XBAR3, 6 and 12.

STRTPL 1000

1 channel strobe current control.

SWRTPL 1000

2 channels continuous or strobe.

THINLED DRIVE 1 CHANNEL

1 channel fast strobe current control.

THINLED DRIVE 5 CHANNELS

5 channels fast strobe current control.

S-COAX

Coaxial light.

SMaLL SDOME 80 (1st gen.)

Small dome light.

SMALL SDOME 130 (1st gen.)

Small dome light.

LOW ANGLE 80 (1st Gen.)

Powerful low angle illumination.

LOW ANGLE 130 (1st gen.)

Powerful low angle illumination.
